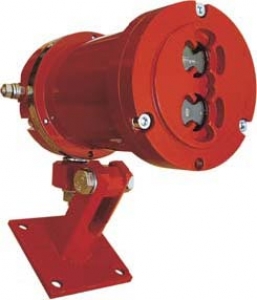

IR Flame Detector
Hover over image to zoom
|
 Price: $1,700.00
Product ID : ESP-IPES-IR
Manufacturer: ESP Safety
Weight: 8.00 lbs
E-mail to a friend
Please complete this form.
All fields are required. Purchase |
Description
ESP Safety's Model IR flame detector is designed to detect and alarm for
conditions of flame and fire within it’s field vision. Once a condition is
detected it would transfer alarm signals to receiving-and-control devices
(RCD) of control and operations rooms, fire alarms, and burglar/fire alarm
systems.
The model IPES IR with integrated infrared sensors is allowed to monitor
fires in IR spectral range with a 90 degree field of view.
Optical filters and design of receivers determine the range of maximum
spectral sensitivity of the detector for IR radiation – 4.2…4.6 micron. The
sensors and optical filters are chosen so that IPES is maximally sensitive
to the radiation produced by fire provided flare light from incandescent
lamps, sunlight and hot objects is maximally suppressed. Based on
operational wavelength and distances, the coefficient of extinction for air is
negligible.
In the process of operation, IPES generate dry relay contacts, informational
analog signals 4-20 mA and standard communication channel RS-485
under protocol MODBUS RTU. IPES is made in an explosion-proof
modification for use in hazardous (classified) locations; the type of
implosion protection is “Explosion-proof”, Class I, Division 1, Group B, C&
D, T4.
