Home > Variable Frequency Drives > Q9 HVAC Class
Printable Version

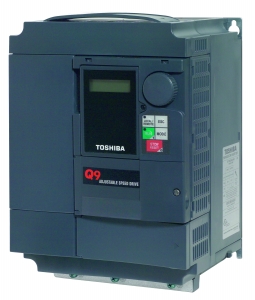

Q9 HVAC (230 V) ASD Power Unit

Q9 HVAC (230 V) ASD Power Unit
Hover over image to zoom

More images

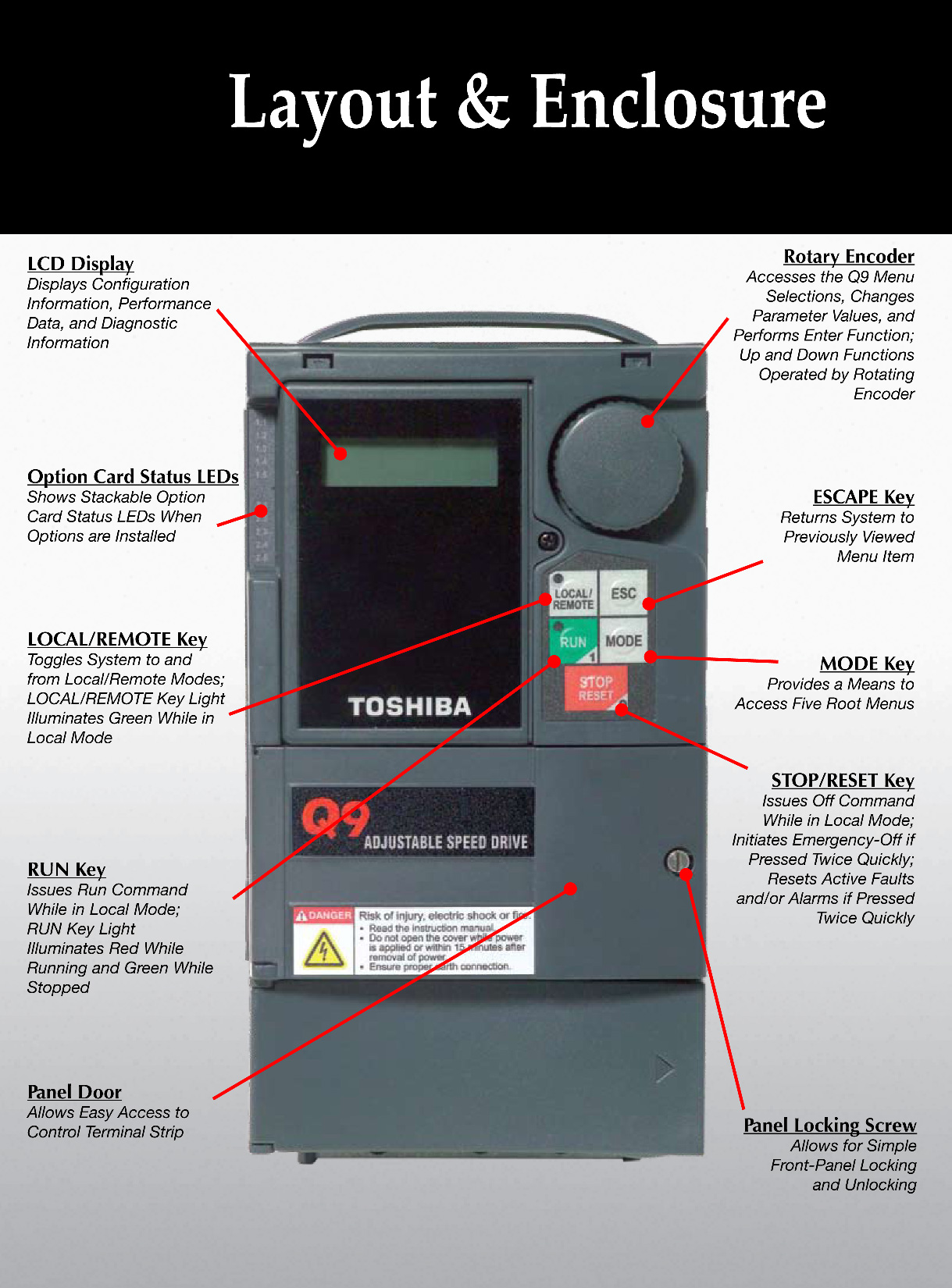

  • Q9 Layout
Click to enlarge
Price: $0.00
Product ID : Q9-230
Manufacturer: Toshiba International Corp
Delicious Bookmark this on Delicious
E-mail to a friend

Purchase

VT130Q9U2015 [1HP] (+$694.00, +10.00 lbs)
VT130Q9U2025 [2HP] (+$707.00, +10.00 lbs)
VT130Q9U2035 [3HP] (+$736.00, +14.30 lbs)
VT130Q9U2055 [5HP] (+$744.00, +14.30 lbs)
VT130Q9U2080 [7.5HP] (+$949.00, +35.50 lbs)
VT130Q9U2110 [10HP] (+$1,044.00, +35.50 lbs)
VT130Q9U2160 [15HP] (+$1,320.00, +53.00 lbs)
VT130Q9U2220 [20HP] (+$1,387.00, +53.00 lbs)
VT130Q9U2270 [25HP] (+$1,867.00, +53.00 lbs)
VT130Q9U2330 [30HP] (+$1,946.00, +66.00 lbs)
VT130Q9U2400 [40HP] (+$2,591.00, +126.00 lbs)
VT130Q9U2500 [50HP] (+$2,933.00, +126.00 lbs)
VT130Q9U2600 [60HP] (+$3,200.00, +126.00 lbs)

Description

Q9 230 V ASD POWER UNIT BASIC SPECIFICATIONS

HP
FLA
MODEL NUMBER
DELIVERY CODE
FRAME
Weight (lb)
Dimensions (H x W x D) inches
1
4.8
VT130Q9U2015
STOCK-3W
2
10
10
5.1
6
2
7.8
VT130Q9U2025
STOCK-3W
2
10
10
5.1
6
3
11
VT130Q9U2035
STOCK-3W
3
14.3
11.1
6.1
6.5
5
17.5
VT130Q9U2055
STOCK-3W
3
14.3
11.1
6.1
6.5
7.5
25.3
VT130Q9U2080
STOCK-3W
4
35.5
12.6
6.9
6.5
10
32.2
VT130Q9U2110
STOCK-3W
4
35.5
12.6
8.3
7.5
15
48.3
VT130Q9U2160
STOCK-3W
5B
53
16.7
9.1
7.5
20
62.1
VT130Q9U2220
STOCK-3W
5B
53
16.7
9.1
7.5
25
78.2
VT130Q9U2270
STOCK-3W
5B
53
16.7
9.1
7.5
30
92
VT130Q9U2330
STOCK-3W
6
66
16.5
9.4
8.3
40
120
VT130Q9U2400
STOCK-3W
7B
126
21.7
12.6
9.5
50
150
VT130Q9U2500
STOCK-3W
7B
126
21.7
12.6
9.5
60
177
VT130Q9U2600
STOCK-3W
7B
126
21.7
12.6
9.5


Features

The Q9 ASD is designed for HVAC systems offering many popular features needed in the industry.
It comes equipped with a fire-speed circuit that forces the drive to run at a preset speed during
a smoke purge. The Q9 also provides a damper-permissive function that can be used to protect
from over-pressuring ductwork.
A user can set a low-output disable time to force the drive to zero-speed if the drive runs at the
lower limit frequency for a specified time. This option helps reduce energy costs.

Q9 HVAC (230 V) ASD Power UnitARRA Compliant

Schematics Available on Request

PID Control
A built-in proportional/integral/derivative (PID) controller, used to regulate a process without
the need for external control devices, comes standard with the Q9. In addition, the wire-break
function trips the drive if the feedback signal drops below specified levels. This prevents the drive
from accelerating to maximum speed and helps protect the system.

Communications
The Q9 supports many common
protocols used in HVAC applications
including:
• BACnet (MS/TP)®
• LonWorks®
• Metasys N2®
• Modbus RTU®
• APOGEE FLN®

Alarms & Faults
The Q9 provides various alarms and fault-notifications that serve to alert the user when poor
operating conditions are present. This capability not only protects your drive but also protects the
motor that is connected to it.


Equipment Friendly
The Q9’s speed search function can detect the speed and direction of a spinning motor and start
smoothly without tripping. This drive feature proves especially useful when trying to start a motor
after a momentary power outage or in the case of a free-wheeling fan.
Adjustable acceleration/deceleration times and stall capabilities allow for minimal stress on fans,
pumps, belts, and pulleys.
The Q9 is capable of programming up to three different skip frequencies. User-selected frequencies
may be "skipped" to avoid the negative effects of mechanical resonance.


ASD Pro Software
Toshiba offers downloadable software that can be used to interface with the Q9 at no additional
cost. The software can be used to program and control the Q9, download parameter sets, and
monitor real-time conditions.

*PWM Carrier Frequency dependent.

Q9 Series Model
PWM Carrier Frequency
 MG-1-1998 Section IV, Part 31 Compliant Motors
230 volt
All
 1000 Feet
460 volt
<5 kHZ
 600 Feet
≥5 kHZ
 300 Feet

Exceeding the peak voltage rating or the allowable thermal rise time of the motor insulation system will reduce the life expectancy of the motor.

Contact Swann & Assocates for application assistance when using lead lengths in excess of the values shown in the above table.





Extended Warranty
Type
Period (Yr)
Drive Adder
Parts
2
1.5%
Parts & Labor
2
3.0%
Parts
3
4.0%
Parts & Labor
3
8.0%
Parts
4
7.5%
Parts & Labor
4
15.0%

Standard factory warranty is 18 months from date of shipment from Toshiba Houston, or 12 months after start up, whichever occurs first.

If the Toshiba VFD is started up by a factory certified start up technician, a  30 month from date of shipment, or
24 month from date of start up, whichever occurs first, warranty, will apply.

For extended warranty to apply, a start up sheet must be completed and returned to Swann and Associates.
