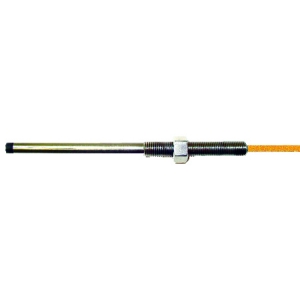

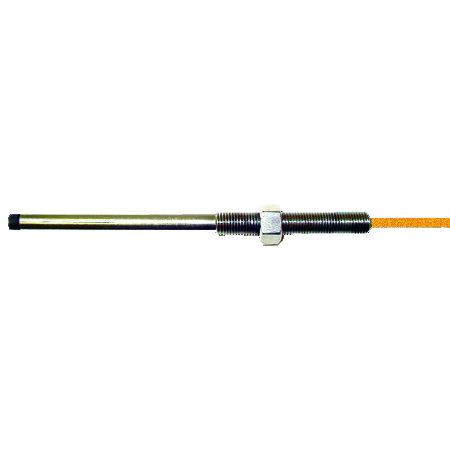

10000 Series Custom Probe Configuration

Manufacturer: Metrix Instrument Company

Product ID: 10000-Custom

Weight: 1.00 lbs

$372.00

Tip Diameter | Case Threads | Armor

Untheaded Length (Imperial)( max = case length -1.0in)

Untheaded Length (Metric)(Max= case length-20mm)

Case Length (Imperial) (max=9.5in)

Case Length (Metric)

Proble Length (includes body and pigtail)

Intended order specs (used to check part number orderd)

E-mail to a friend

Overview

-Interchangable with most existing transducer installations
-System lengths of 5m, 7m, 9m, 15 ft or 20 ft
-Armored or unarmored cable
-Intrinsically safe versions available
-English or metric threads

The 7200 series rack monitors are obsolete. But 7200 series transducers still populate many machines in a variety of industries. They are available in most configurations from Metrix. It is likely that we have made probes in your configuration before, but if we have not, we will be pleased to quote your special needs.

Probes, cables and drivers or transmitters are combined within a unique SERIES and not mixed with other SERIES (i. e., 3300, 3300 XL, 3309 NSv, or the 3000 series). The lengths of the probes* and extension cables must combine for a system length of 5 or 9 meters. i.e.,a 1 meter probe combines with a 4 or 8 meter cable for a 5 or 9 meter system respectively and a 0.5 meter probe combines with a 4.5 or 8.5 meter extension cable for a 5 or 9 meter system respectively.
All proximity transducers have third party approvals, comply with API 670 Specifications, and feature patented ProxMatch™ component coding to assure proper matching of components.
These transducers are interchangeable with the 7200 series. Other Metrix transducers are available compatible with most installed proximity transducers including the 3300 XL, 3309 NSV, 3300, RAM, and 3000 Series. Proximitor, 3300XL, 3300XL NSv, 3309 NSv and RAM are registered trademeaks of the Bently Nevada Corp.

View Specs
