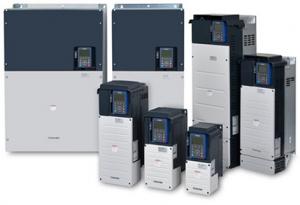

AS3 460V Low Voltage Heavy Duty
Manufacturer: Toshiba International Corp
Product ID: AS3-460V
Price:
$0.00
Overview
The Toshiba AS3 variable frequency drive has the following features:

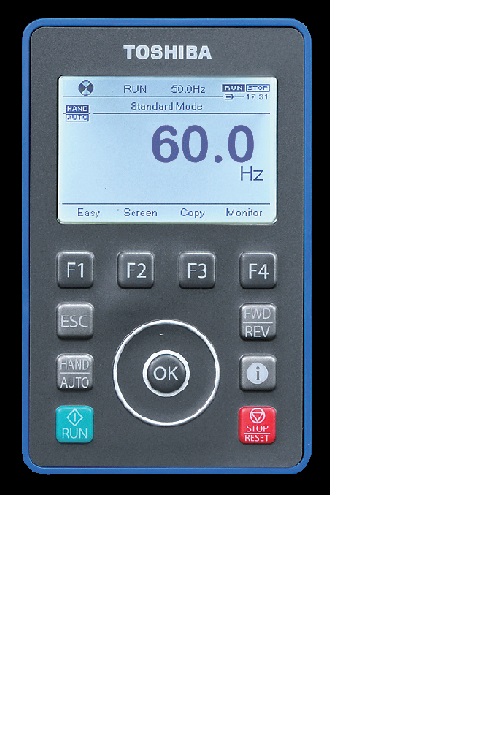

*Advanced remote mount LCD full English keypad included
*Dual rating
*100kAIC with proper fusing
*DC link reactor included
*Cassette style easy install option cards
*50 C ambient rating, 60 C with de-rate
*Embedded dual port Ethernet IP
*Embedded web server
*STO (Safe-Torque Off) safety terminal
*Permanent magnet motor control
*Advanced Pump Control
*Toshiba ASD Pro Software
*Broad Range of Compliances
*NEC 2005 Motor Overload Retention (No External Motor Overloads Required)
*NEMA 1 Enclosure
*UL Listed & Labeled
*Optional IP55 Enclosure
*Advanced remote mount LCD full English keypad included
*Dual rating
*100kAIC with proper fusing
*DC link reactor included
*Cassette style easy install option cards
*50 C ambient rating, 60 C with de-rate
*Embedded dual port Ethernet IP
*Embedded web server
*STO (Safe-Torque Off) safety terminal
*Permanent magnet motor control
*Advanced Pump Control
*Toshiba ASD Pro Software
*Broad Range of Compliances
*NEC 2005 Motor Overload Retention (No External Motor Overloads Required)
*NEMA 1 Enclosure
*UL Listed & Labeled
*Optional IP55 Enclosure
|
Toshiba AS3 460V ASD POWER UNIT SPECIFICATIONS
|
|
| Features |
| Toshiba’s AS3 adjustable speed drive is designed with an emphasis on built-in communications, allowing end-users to access real-time data and refined controls to maximize system performance. |
Schematics and Brochures |
|
Toshiba Highlights
• Dual Rating through Parameter Change (Heavy Duty and Normal Duty) o Heavy Duty 150% Overload for 60 Seconds o Normal Duty 120% Overload for 60 Seconds • Eight Programmable Digital Inputs • Three Programmable Digital Outputs: One Form-C Relay & Two Form-A Dry Contact Relays • Three Programmable Analog Inputs: One 4 to 20mA, One 0 to 10 VDC, & One +10 VDC • Two Programmable Analog Outputs: Both 4 to 20mA or 0 to 10 VDC • Embedded STO Safety Terminal Compliant with IEC 61800-5-2 and SIL3 level in IEC 61508 • Two-Wire/Four-Wire RS485 • Built-in Dual Port Ethernet, TCP/IP • Embedded Web Server • Real-Time Clock for Past Trip Monitoring or Calendar Functionality • QR Code Display for Additional Parameter Information and Fault Troubleshooting Toshiba Standard Features • NEMA 1 up to 100 HP HD (125 HP ND) 460 V • Ambient Temperature: 14° to 122°F (-10° to +50°C) or 140°F (+60°C) with Derate • Altitude: Up to 1000 Meters Without Derate • Humidity: 95% Non-Condensing • Advanced LCD Keypad with Capacitive Touch Wheel for Navigating and Programming • Save, Restore & Clone Multiple Drive Settings • Real Time Clock for Past Trip Monitoring or Calendar Functionality • Built-in Dynamic Braking Drive Circuit Up to 100 HP HD (125 HP ND) 460 V • Built-in conduit box • All Models Include DC Link Reactor  Call for Intregrated enclosures, disconnects and filters. |
|
|
