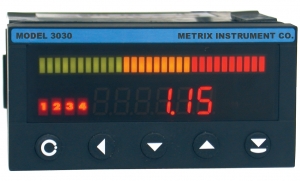

Metrix AM3030 Single Channel Alarm Monitor

Manufacturer: Metrix Instrument Company

Product ID: AM3030

Weight: 5.00 lbs

$1,130.00

E-mail to a friend

Overview

4-20 mA process monitor
2 or 4 adjustable relays
30 segment multi-color bargraph display
6 digit numerical readout
Internal isolated power supply for transmitters (24V)
24 VDC, 110 or 230 VAC voltage supply
1/8 DIN with NEMA 4 front bezel
Analog output, modbus serial output and time stamp options
Compatible with Metrix Transmitters (ST5484E, TXR, ST6900 Series)

Swann & Associates still currently supports the Metrix AM3030

The Metrix AM3030 Single Channel Alarm Monitor is a three color bargraph display with numerical indicator. It provides transmitter excitation and up to 4 programmable trip points in a neat 1/8 DIN package. This alarm monitor compliments the Metrix line of vibration transmitters by consolidating excitation, display and protection into a single compact package. Analog and serial retransmission is available. The Metrix AM3030 accepts 4-20 mA current inputs. It is configured using the 5 front panel keys. The green, yellow, red LED bargraph display can be configured for point or bar display and for one color or tricolor with change on alarm or change by zone.
