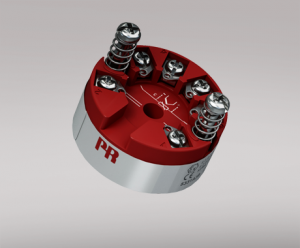

Pr Electronics 5331
Application
-
Linearized temperature measurement with Pt100...Pt1000, Ni100...Ni1000, or TC sensor.
-
Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
-
Amplification of a bipolar mV signal to a standard 4...20 mA current signal.
Technical characteristics
-
Within a few seconds the user can program PR5331A to measure temperatures within all ranges defined by the norms.
-
The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection.
-
Continuous check of vital stored data for safety reasons.
Mounting / installation
- For DIN form B sensor head or DIN rail.
Environmental Conditions
-
Specifications range....................................... -40°C to +85°C
-
Calibration temperature................................. 20...28°C
-
Relative humidity............................................ < 95% RH (non-cond.)
-
Protection degree (encl./terminal).................. IP68 / IP00
Mechanical specifications
-
Dimensions.................................................... Ø 44 x 20.2 mm
-
Weight approx................................................ 50 g
-
Wire size........................................................ 1 x 1.5 mm2 stranded wire
-
Screw terminal torque.................................... 0.4 Nm
-
Vibration......................................................... IEC 60068-2-6 : 2007
-
Vibration: 2...25 Hz........................................ ±1.6 mm
-
Vibration: 25...100 Hz.................................... ±4 g
Common specifications
-
Supply voltage............................................... 7.2...35 VDC
-
Internal consumption...................................... 25 mW…0.8 W
-
Voltage drop................................................... 7.2 VDC
-
Isolation voltage, test /working.......................1.5 kVAC / 50 VAC
-
Warm-up time................................................. 5 min.
-
Communications interface............................. Loop Link
-
Signal / noise ratio......................................... Min. 60 dB
-
Response time (programmable).................... 1...60 s
-
EEprom error check....................................... < 3.5 s
-
Accuracy........................................................ Better than 0.05%
-
Signal dynamics, input................................... 20 bit
-
Signal dynamics, output................................. 16 bit
-
Effect of supply voltage change..................... < 0.005% of span / VDC
-
EMC immunity influence................................ < ±0.5% of span
-
Extended EMC immunity: NAMUR
-
NE 21, A criterion, burst................................. < ±1% of span
-
Input specifications
-
Max. offset...................................................... 50% of selected max. value
-
RTD input....................................................... Pt100, Ni100, lin. R
-
Cable resistance per wire
-
(max.), RTD.................................................... 5 Ω
-
Sensor current, RTD...................................... Nom. 0.2 mA
-
Effect of sensor cable resistance
-
(3-/4-wire), RTD............................................. < 0.002 Ω / Ω
-
Sensor error detection, RTD.......................... Yes
-
TC input: Thermocouple type......................... B, E, J, K, L, N, R, S, T, U,
-
W3, W5, LR
-
Cold junction compensation
-
(CJC).............................................................. < ±1.0°C
-
Sensor error detection, TC............................. Yes
-
Sensor error current: When
-
detecting / else............................................... Nom. 33 μA / 0 μA
-
Voltage input: Measurement
-
range.............................................................. -12...800 mV
-
Min. measurement range (span),
-
voltage input................................................... 5 mV
-
Input resistance, voltage
-
input............................................................... 10 MΩ
Output specifications
-
Current output: Signal range......................... 4…20 mA
-
Min. signal range............................................ 16 mA
-
Updating time................................................. 440 ms
-
Load resistance, current output..................... ≤ (Vsupply - 7.2) / 0.023 [Ω]
-
Load stability, current output.......................... ≤0.01% of span / 100 Ω
-
Sensor error indication, current
-
output............................................................. Programmable 3.5…23 mA
-
NAMUR NE 43 Upscale/Downscale.............. 23 mA / 3.5 mA
Approvals
-
EMC............................................................... EN 61326-1
-
ATEX.............................................................. KEMA 10ATEX0002 X
-
IECEx............................................................. DEK 13.0035X
-
INMETRO....................................................... DEKRA 13.0001 X
-
GOST R......................................................... Yes
-
DNV Marine.................................................... Stand. f. Certific. No. 2.4
