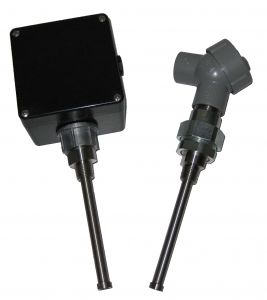

Proximity Probe Holder - High Pressure (#20609)

Proximity Probe Holder - High Pressure (#20609)

Manufacturer: Swann & Associates Instrumentation

Product ID: 20609

Weight: 4.00 lbs

$800.00

E-mail to a friend

Overview

*High pressure, tested to 1800 psig (125 BAR). Test video available.
*1 piece, centerless ground, sleeve with anti-blow out collar.
* 3/8 x 24UNF and M10 x 1.0 probe threads available
*12' (305mm) & 18" (458mm) sleeves available.
*Viton O-ring seals throughout.
*Precision Micro adjustable probe gap in "hot" process conditions.
*Minimal installation clearance for probe.
*Connector head rotates 360°.
*IEC type, Eex "e" glass reinforced polyester terminal box for ATEX IIG applications. 2 x M20 entries (1/2NPT); one plugged.
* NEMA3R IP64 environmental rating.

High pressure, tested to 1800 psig (125 BAR). Test video available.
1 piece, centerless ground, sleeve with anti-blow out collar.
Precision O-ring seals throughout.
Micro adjustable probe gap in “hot” process conditions.
Minimal installation clearance for probe.
Precision, screw type probe height adjustment; allows adjustment under pressure.
Connector head rotates 360°.
12” (305mm) & 18” (458mm) sleeves available.
IEC type, Eex “e/ia” glass reinforced polyester terminal box for ATEX IIG (when fitted with the appropriate apparatus) applications. 2 x M20 entries; one plugged.

Data Sheet

Specifications

Process connection: ½ NPT male. Forged adapter bushing available for 3/4 NPT and 1 NPT applications.
Configured for 3/8 x 24UNF back mount proximity probe.
Electrical entry: 1 NPS / ¾ NPS, includes reducer bushing.
NEC. Electrical rating: Suitable for Class 1, Div. 1, Groups C & D, Class 2, Div. 1 Groups E, F, G, Class 3.
IEC. Electrical rating: Suitable for Zone 1, 2, 21, 22.
Wetted materials: 303 stainless steel, passivated.
O-rings: Viton (Fluoroelastomer).
Temperature rating: 32-300°F (0-150°C). O-ring & probe limited. Consult for different temperatures/gases.
Environmental rating: NEMA3R (IP64) when mounted within 45° of upright.
Sleeve insertion with 12 inch sleeve: ¼ inch (6.4mm) minimum, 7.8 inch (198mm) maximum. Can be cut to required length.

Sleeves:

1/8 NPT with collar, for Bently Nevada ® high pressure probes x 12 inch (305mm). 9/16th wrench flats on collar.
3/8-24UNF with collar x 12 inch (305mm). 9/16th wrench flats on collar.
3/8-24UNF without collar x 18 inch (458mm).
10mm x 1.0 without collar x 17 inch (432mm).
Custom capability.
