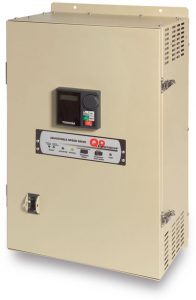

Q9 460V NEMA 1 Integrated Enclosure
Overview
• 2 analog inputs
• 8 programmable digital inputs
• 2 programmable analog outputs
• 3 programmable output contacts
• Firespeed supression control
• Damper output permissive
• PID control
• Energy saving sleep function
• "My Function" features PLC functionality as standard feature.
2. Power features
• UL listed for 100K AIC interruption rating.
• Rated for operation continuously at 100% of FLA, 110% for 60 secs.
• Near unity power factor.
• DC choke 25HP & above for harmonics supression.
• Oversized DC buss capacitors for longer life.
• 600 foot motor lead lengths possible without use of special DV/DT filters.*
|
Q9 460 V NEMA 1 INTEGRATED ENLCLOSURE
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Features |
|
The Q9 integrated enclosure combines the Q9 power unit with commonly used options like manual bypass and input circuit breakers in an easy-to-install turn-key package. The Integrated enclosures are rated at 100 KAIC. Integrated enclosure style configurations Include:
*Isolated three-contactor bypass units include: Test/Off/On switch and Inverter/Off/Bypass selector switch on the enclosure door for control. |
|
|
PID Control Communications Alarms & Faults
*PWM Carrier Frequency dependent. |
Exceeding the peak voltage rating or the allowable thermal rise time of the motor insulation system will reduce the life expectancy of the motor. Contact Swann & Assocates for application assistance when using lead lengths in excess of the values shown in the above table. |
Extended Warranty |
||
Type |
Period (Yr) |
Drive Adder |
Parts |
2 |
1.5% |
Parts & Labor |
2 |
3.0% |
Parts |
3 |
4.0% |
Parts & Labor |
3 |
8.0% |
Parts |
4 |
7.5% |
Parts & Labor |
4 |
15.0% |
