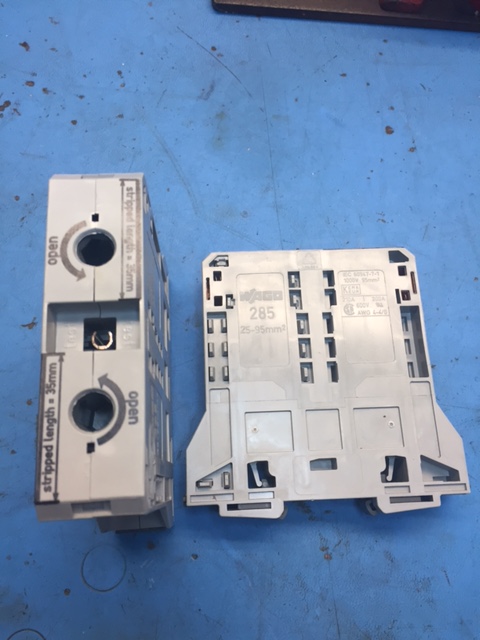

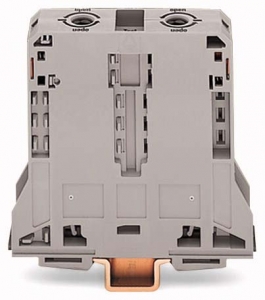

2-Conductor through Terminal Block for DIN 35 rail. P/N: 285-195, Rated 1000V, 4-AWG, 25mm
Manufacturer WAGO
SKU 285-195
Weight 0.57 lbs
MPN 285-195
Total number of connection points 2
Total number of potentials 1
Color gray
Ratings per IEC/EN 60947-7-1
Rated voltage (III / 3) [V] 1000 V
Rated impulse voltage (III / 3) [kV] 8 kV
Rated current [A] 232 A
Number of levels 1
Connection technology POWER CAGE CLAMP
Number of connection points connector 2
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 25 … 95 mm² / 4 … 4/0 AWG
Fine-stranded conductor 25 … 95 mm² / 4 … 4/0 AWG

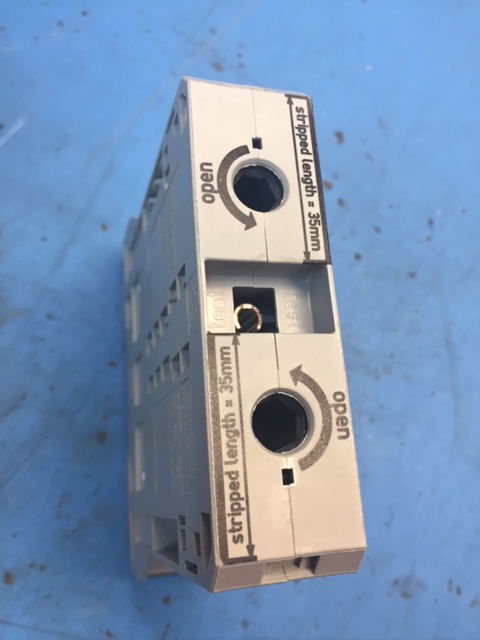

Strip length 35 mm / 1.38 Inch
Type of wiring Side-entry wiring
Design horizontal
Marking level Side marking
Insulating material Polyamide 66 (PA 66)
Fire load [MJ] 3.564 MJ
Weight [g] 264.291 g
Width 25 mm / 0.984 Inch

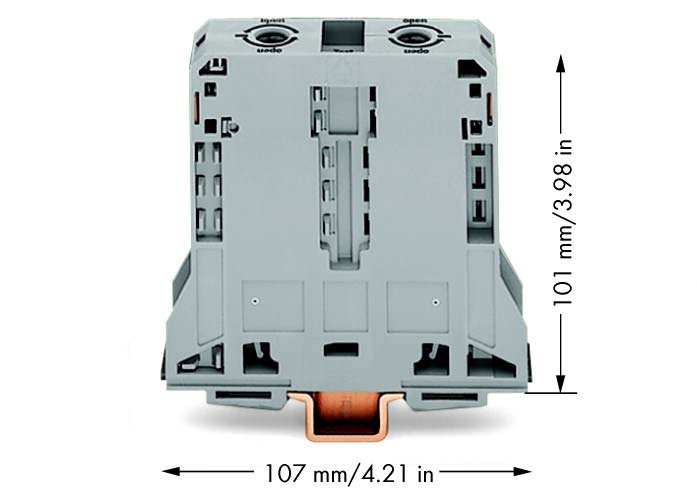

Height from upper-edge of DIN-35 rail 101 mm / 3.976 Inch
Depth 107 mm / 4.213 Inch

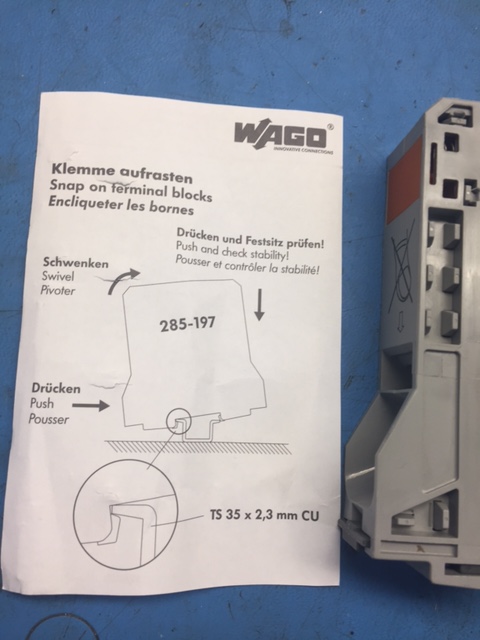

Type of mounting DIN-35 x 15 carrier rail
)
)
)
)
