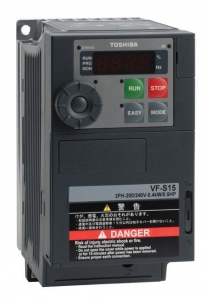

S15 460V Low Voltage Heavy Duty Drive

Product ID: S15 460V 3-Phase

Weight: 4.00 lbs

$355.00

Overview

Toshiba’s heavy duty S15 adjustable speed drive.
MODEL RANGE: 1/2 HP to 20 HP
Voltage Rating Single-Phase 230 VAC Three-Phase 230 VAC Three-Phase 460 VAC
POWER REQUIREMENTS
Input Tolerance Voltage: ±10%; Frequency: ±5%
Output Frequency 0.1 to 500 Hz

Toshiba S15 460V Input ASD general specifications
VAC	HP	FLA	Model Number	Deliver Code	FRAME	Weight	Dimensions (HxWxD) Inches
VAC	HP	FLA	Model Number	Deliver Code	FRAME	Weight	H	W	D
460	0.50	1.5	VFS15-4004PL1-W1	STOCK	2C4	4	4.2	6.0	4.0
	1	2.3	VFS15-4007PL1-W1	STOCK	2C4	4.2	4.2	6.0	4.2
	2	4.1	VFS15-4015PL1-W1	STOCK	2C4	4.4	4.2	6.0	4.4
	3	5.5	VFS15-4022PL1-W1	STOCK	3C4	6.6	5.5	6.3	6.6
	5	9.5	VFS15-4037PL1-W1	STOCK	3C4	7.3	5.5	6.3	7.3
	7.5	14.3	VFS15-4055PL-W1	STOCK	4C4	11.7	5.9	6.7	11.7
	10	17	VFS15-4075PL-W1	STOCK	4C4	11.9	5.9	6.7	11.9
	15	27.7	VFS15-4110PL-W1	STOCK	5C4	19.2	7.1	7.5	19.2
	20	33	VFS15-4150PL-W1	STOCK	5C4	19.4	7.1	7.5	19.4

Toshiba S15 Low Voltage Heavy Duty Micro

Toshiba’s heavy duty S15 adjustable speed drive is a compact and high performance drive designed for controlling a wide range of variable and constant torque applications. This micro-drive is capable of working with permanent magnet (PM) motors, which allows a greater flexibility in selecting a motor for an application and optimizes energy savings. A robust design allows the S15 to operate in extreme temperatures and environments. In addition, the S15 features advanced technologies, and an expanded PID control allows a greater level of precise control and operation of difficult level control applications. No other micro-drive delivers such reliable and extreme performance with extensive capabilities at such a competitive cost.

S15 Specification
MODEL RANGE	1/4 HP to 3 HP	1/2 HP to 20 HP	1/2 HP to 20 HP
Voltage Rating	Single-Phase 230 VAC	Three-Phase 230 VAC	Three-Phase 460 VAC
POWER REQUIREMENTS
Input Tolerance	Voltage: ±10%; Frequency: ±5%
Output Frequency	0.1 to 500 Hz
CONTROL SPECIFICATIONS
Control Method	Sinusodial Pulse Width Modulation (PWM); Flux-Field Current Vector Control; Set Point Control (PID)
Voltage Regulation	Main Circuit Voltage Feedback Control: Automatic, Fixed, & Off
V/Hz Control	V/f Constant, Variable Torque, Automatic Torque Boost, Vector Control, PM Motor Control, 5-point V/F Custom Setting, & Auto-Tuning
PWM Carrier Frequency	Adjustable 2 to 16 kHz (For Drive Specific Information Consult Factory)
Frequency Setting	Rotary Encoder Integrated into EOI, 0 to 10 VDC, ±10VDC, 4 to 20 mA, Digital Input, Binary Input, & Motorized Potentiometer Input
Frequency Precision	Analog Input ±0.5% of Maximum Output Frequency; Discrete/Communications Input ±0.01% of Maximum Output Frequency
Speed Regulation	Open Loop: Up to 0.1%, 60:1 Speed Range
Main Protective Functions	Stall Prevention, Current Limit, Over-Current, Output Short Circuit, Over-Voltage, Over-Voltage Limit, Undervoltage, Ground Fault Detection, Input Phase Failure, Output Phase Failure, Overload Protection by Electronic Thermal Function, Armature Over-Current at Start-Up, Load Side Over-Current at Start-Up, Over-Torque, Undercurrent, Overheating, Cumulative Operation Time, Life Alarm, Emergency Stop, & Various Pre-alarms
Retry	User-Set Number of Retries for Automatic System Restart After Trip
Restart	Able to Smoothly Catch Freewheeling Motor (Bidirectional)
Overload Current Rating	110% Continuous; 150% for 1 Minute
CONTROL INTERFACE
Digital Input	6 Discrete Input Terminals Programmable to 110 Functions (May Be Increased Using Optional Hardware)
Digital Output	3 Discrete Output Terminals Programmable to 150 Functions; 1 Form-A Contact, 1 Form-C Contact, & 1 Open Collector Output
Analog Input	3 Programmable: One 4 to 20 mA Input, One 0 to 10 VDC Input, & One ±10 VDC Input
Analog Output	1 Programmable: 4 to 20 mA or 0 to 10 VDC
Communication Ports	RS485 Port (TSB or MODBUS RTU Protocol)
ELECTRONIC OPERATOR INTERFACE (EOI)
Display	4x20 Graphical Full-English LCD Back-Lit Display for Programming, Monitoring, & Diagnostics
LED Indicators	Run (Red)/Stop (Green), Hand (Green), & DC Bus Charge Indicator (Red)
Keys	Run, Prg, Mon, Status, %, Hz, Stop, Mode, & Easy Key; Rotary Encoder for Parameter Navigation, Settings, & Control
Monitoring	Frequency Command Screen; Multiple Parameters Displayed: Output Frequency, Forward/Reverse Run, Output Current, Input Voltage (DC Detection), Output Voltage, Torque, Inverter Load Factor, Motor Load Factor, Braking Resistor Load Factor, Input Power, Output Power, Input Terminal status, Output Terminal Status, Overload/Regional Setting, PID Feedback Value, Stator Frequency, Parts Replacement Alarm, Cumulative Operation Time, & Past Trips
CONSTRUCTION
Enclosure	RAL 7016 (Anthracite Gray); IP20; Wall-Mount; Front-Access Only
Power Cables	Bottom Access for Input/Motor Cables
Cooling	Self-Cooling/ Forced Air-Cooled
Standards & Compliances	UL Listed in US & Canada, CSA, & CE
AMBIENT CONDITIONS
Ambient Temperature	0 to 60°C (Note: See Manual for Details, Ambient Temperatures Above 50°C May Require a De-Rate)
Altitude	3300 ft. Above Sea Level (Up to 10,000 ft. with Derate)
Humidity	95% Maximum (Non-Condensing)
Installation	Indoors; No Direct Sunlight; Protects from Corrosive Gas/Explosive Gas/Flammable Gas/Oil Mist/Dust; Vibration of Less Than 5.9 m/s2 (10 to 55 Hz)
