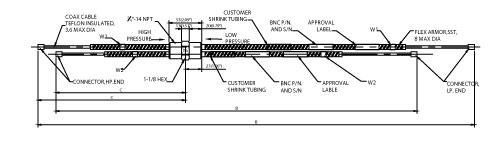

High Pressure Extension Cables Feed Through TM0191

The high pressure extension cable feed through can be
used in pressurized machine areas. The hi-pressure
extension cable feed through is sealed for up to 150 psi
(1.0 Mpa).

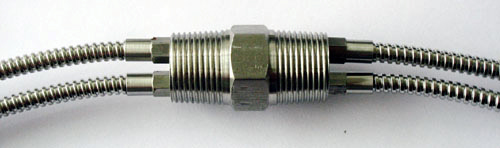

There are three versions of the high pressure feed
through (single, dual and triple cables) which allows for a
maximum of three cables to pass through the machine
case. The high pressure end is supplied with female
connectors and the low pressure end with male
connectors.

Order Information
TM0191-AXX-BXX-CXX

AXX: Type and Armor
A01: Single cable without armor
A02: Single cable with armor at low pressure end
A03: Single cable with armor at high pressure end
A04: Single cable with armor at both ends
A05: Dual cable without armor
A06: Dual cable with armor at low pressure end
A07: Dual cable with armor at high pressure end
A08: Dual cable with armor at both ends
A09: Triple cable without armor
A10: Triple cable with armor at low pressure end
A11: Triple cable with armor at high pressure end
A12: Triple cable with armor at both end

BXX: Total Length
B40: 4.0 meters
B45: 4.5 meters
B80: 8.0 meters
B85: 8.5 meters

CXX: High Pressure Length
Order in increments of 0.1 meter
Minimum length = 0.5 meter
Maximum length = 8.0 meters
