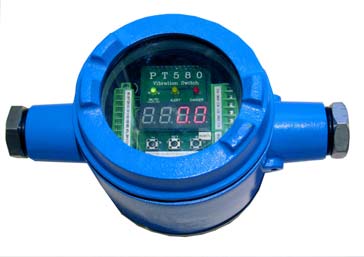

PT580 Digital Vibration Switch

Manufacturer: ProvibTech

Product ID: PT580

Weight: 4.00 lbs

$977.00

A: Alarms

B: Conduit Entries

C: Mounting Plate or Mounting Stud

D: Local Display

E: Hazardous Area Approval

F: Outputs/Communication

GG: Full Scale

H: Sensors

I: Power Supply

Configuration Kit

None

NONE

Include Configuration and calibration software kit [ PT580-CFG configuration software CD; RS485-USB converter with cable; User manual] (+$278.00, +2.00 lbs)

Order Specs

E-mail to a friend

Overview

* The first digital vibration switch
*Direct replacement for mechanical switches with universal mounting plates and studs
*Fully programmable
*4-20mA output and Modbus
*Dual alarms with relays or triacs
*Works with internal or external sensor
* “Smart Design” universal power supply
*Wide operating temperature range of -40°C to+85C° (-40°F to +185°F)
*NEMA 4X, IP65 environmental rating
*Hazardous area approvals: CSA, CE, PCEC
*Additional API 670 features: trip

The PT580 Digital Vibration Switch is designed to be
the “one stop shop” for all vibration switch applications.
The PT580 is fully programmable, suitable for harsh
environments and hazardous areas. It has a universal
mounting feature, wide operating temperature range,
dual alarms, 4-20mA output, Modbus communication,
and works with an internal or a remote sensor.

Features
* The first digital vibration switch
*Direct replacement for mechanical switches with universal mounting plates and studs
*Fully programmable
*4-20mA output and Modbus
*Dual alarms with relays or triacs
*Works with internal or external sensor
* “Smart Design” universal power supply
*Wide operating temperature range of -40°C to+85C° (-40°F to +185°F)
*NEMA 4X, IP65 environmental rating
*Hazardous area approvals: CSA, CE, PCEC
*Additional API 670 features: trip

Data Sheet

Specifications
Frequency Range:
Internal sensor: 2 - 1,000 Hz
External sensor: 2 - 2,000 Hz

Alarms: Dual alarms
Dry-contact relay: 5A 230VAC/115VAC or 5A 30VDC
Triac: 5A 230VAC. Optically Isolated, Standard NC
Temperature Limit: -40℃ to +85℃ (-40℉to +185℉)

Power Supply:
95 - 250VAC@ 100mA, 50 - 60Hz, or
22 - 30VDC @ 200mA

Enclosure: Cast Aluminum (copper free)

Coating: Standard plastic coating for all cased aluminum
parts outside. Mounting plate, mounting stud and local
reset are 304 stainless steel.

Environmental Rating: NEMA 4X, IP65

Hazard Rating: See order information

Programming (customer selects the option):
Fully programmable with software or
Pre-configured at factory

Physical

Temperature:
Operation: -40℃ to +85 ℃ (-40 ℉ to +185 ℉)
Storage: -50℃ to +120℃ (-58℉ to +248℉)

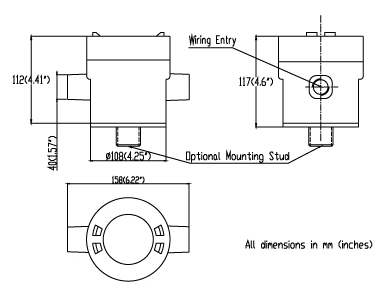

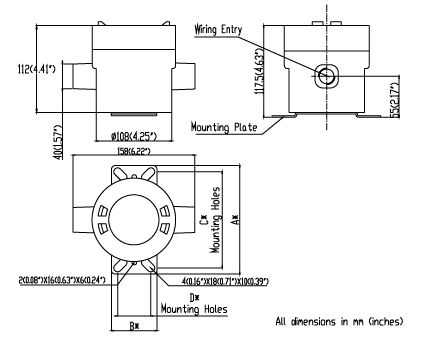

Dimensions:
See attached drawing
Weight:
1.4kg (3 lbs)
PT580
