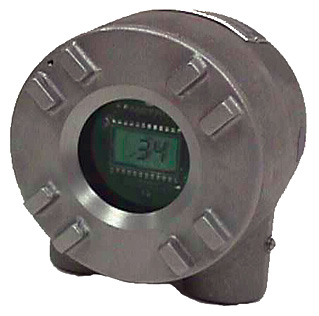

SW6000 Explosion Proof Housing

Product ID: SW6000

Weight: 6.00 lbs

$0.00

A: Limits & Display

BB: Full Scale Range

C: Input Power

D: Certifications Local Reset Options

E: Input/Output Options

F: Mount/Conduit Entries

E-mail to a friend

Overview

- Low cost protection system
- Weatherproof/optional ex-proof rated
- Single or optional dual setpoint
- Velocity or displacement response
- Adjustable Trip Delay
- Setpoint test feature
- Buffered dynamic vibration signal output for analysis

The Metrix SW6000 electronic vibration switch is a versatile machinery protection instrument.
In its standard configuration, the Metrix SW6000 is an
economical single set point vibration switch loaded with standard
features and packaged in an industrial grade housing.

Fully configured, the Metrix SW6000 provides for local machine control
with optional LCD readout, real time remote operator interface via 4-20
mA and an external BNC (weather-proof only) for easy analyst access
to the buffered dynamic vibration signal. Optional hazardous area
certifications are available.

Data Sheet

SPECIFICATIONS
Sensor:	Internal piezoelectric accelerometer.
Signal Conditioner:	Amplifier/integrator to obtain velocity or displacement response.
Triac Outputs:	"A" = 1, 2, 5 or 6; 250 VAC, 1A, optically isolated; standard is N.C. (fail-safe), N.O. field selectable.
Maximum Vibration Input:	0 to 490 m/sec2 (50 g), peak 0 to 100 mm/sec (4 in./sec), peak
Frequency Response:	Velocity: 2 Hz to 500 Hz Displacement: 2 Hz to 200 Hz
Adjustable Trip Delay:	Factory set at 1 sec.; 1-15 sec adjustable
Temperature Limits:	No Display: -40° to +85°C (-40° to +185°F) W/Display: -10° to +70°C (+14° to +158°F)
Output Sensitivity vs Temperature:	Less than .05%/°C (calibrated at 25°C)
Cross Axis Response:	Less than 10%
Input Power:	Nom. 115 VAC, 95 to 125, 50/60 Hz Nom. 230 VAC, 190 to 250, 50/60 Hz Nom. 24 VDC, 20 to 28
Galvanic Isolation:	Power from circuit.
Optional Buffered, Dynamic Signal Output:	Sensitivity: 100 mV/g ±2% @ 25°C. Frequency Response: Acceleration: 2 Hz to 500 Hz Non-linearity: Less than 1% of full scale (F.S.)
Field Wiring:	Maximum wire gauge: 14 AWG ; Wire clamp type screw terminal block 500 Vrms isolation from circuit
Housing:	Cast aluminum. Weatherproof.
Environmental Rating:	NEMA 4, IP 65
Electromagnetic Compatibility:	CE Marked
Optional Hazard Rating:	See How To Select "D"
Optional Display:	2½ digit LCD
Optional FET Transistor Output:	50 VDC, 0.5 A, N.C. (fail-safe) standard, N.O. field selectable
Optional 4-20 mA Source Output:	Proportional between 4-20 mA with 20 mA set to full scale. Zero and Span calibrated ±2%. Non-linearity < 2%. 600 ohms maximum load resistance.
