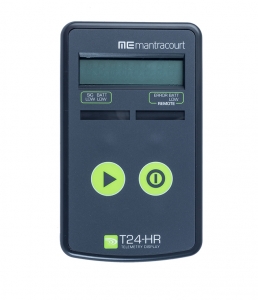

Wireless Telemetry Handheld Display Unlimited Inputs (T24-HR)
Overview
- Auto 'power on' of remote acquisition modules.
- Displays ID of 'live' sensor
- Water-proofed to IP64 NEMA 4
- Simple configuration and calibration
- Up to 200m (650ft) range

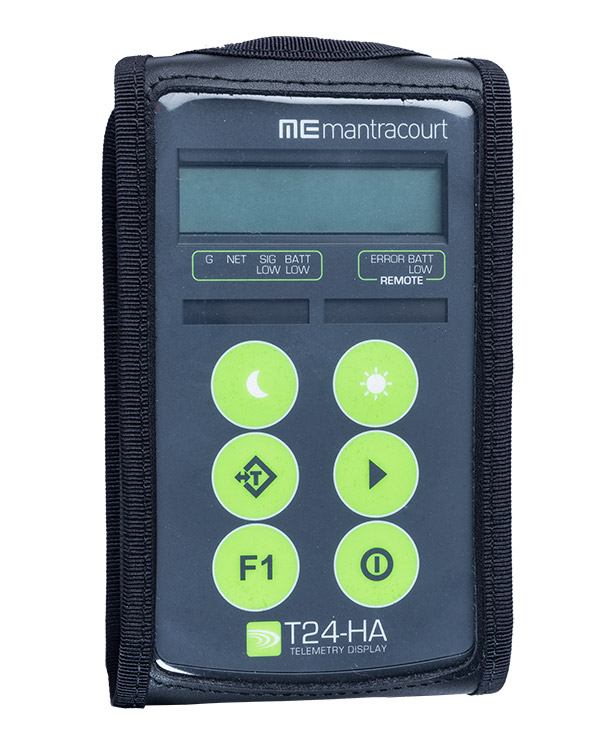

- Optional leather carry case and strap with clear viewing window
|
This Mantracourt radio telemetry handheld display module provides an 8 digit LCD reading from an unlimited number of T24 Acquisition modules (strain gauge, current and voltage). A simple search button is pushed when in the proximity of any aquisition module. The module with the highest signal strength, and nearest to the handheld, will initially be selected and displayed. The data tag of the aquisition module being read is displayed prior to the output reading, allowing identification of the data's origin. Other acquisition modules can be displayed by scrolling. Ideal for systems where manual reading of T24 acquisition modules is required but the number is unknown or may be variable. The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio telemetry technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals. This handheld module uses a pair of standard alkaline AA batteries and is configured using free T24 Toolkit software which runs on a PC connected to a T24 base station.
|
|
T24-HR
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
