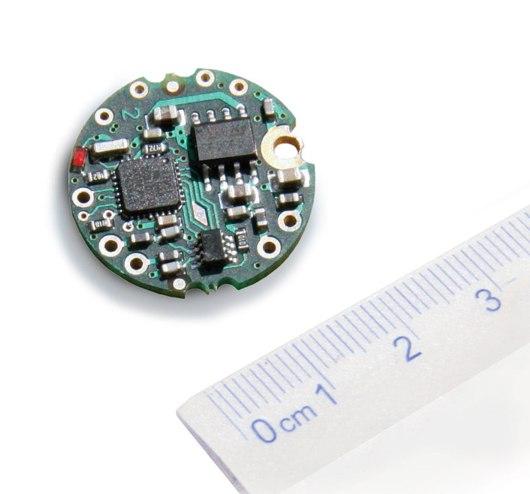

DCell - Strain Gauge or Load Cell Embedded Digitiser Module
Product ID: DCell
Weight: 1.00 lbs
Price:
$210.00
Overview
- High performance at low cost - 24 bit measurement at 4.8 kHz
- Baud rates up to 230k for 500 results per second
- Low profile, small diameter (20mm) and easy mounting via 2mm screw
- Calibrate by Input High/Low or by direct entry of mV/V
- Remote shunt calibration by software command
- Temperature sensor input for active temperature compensation
- Error reporting including strain gauge fault conditions and overloads
- Peak and trough (valley) recording
- Programmable dynamic filter
****NEW ! ! - ATEX component approval on CAN bus versions - Ex Na II
- Baud rates up to 230k for 500 results per second
- Low profile, small diameter (20mm) and easy mounting via 2mm screw
- Calibrate by Input High/Low or by direct entry of mV/V
- Remote shunt calibration by software command
- Temperature sensor input for active temperature compensation
- Error reporting including strain gauge fault conditions and overloads
- Peak and trough (valley) recording
- Programmable dynamic filter
****NEW ! ! - ATEX component approval on CAN bus versions - Ex Na II
|
The DCell Strain Gauge or Load Cell Embedded Digitiser Module is designed to be incorporated directly into strain gauge sensors such as pressure transducers, load cells and torque sensors, the DCell offers high speed and high precision digitising capabilities. Available output formats include RS485 ASCII, Modbus, CAN, CANopen and MantraCAN (J1939). For mounting external to the sensor, the same DCell is available in several easy mounting formats - models DSC Strain Gauge or Load Cell Digitiser Module, DSJ1 Strain Gauge or Load Cell Digitiser Module (1 Channel) and DSJ4 Strain Gauge or Load Cell Digitiser Module (4 Channel) refer. |
|
|
|
