Load Cell Amplifier with Relay & Data Output (LCA20)
Price:
$329.00
Overview

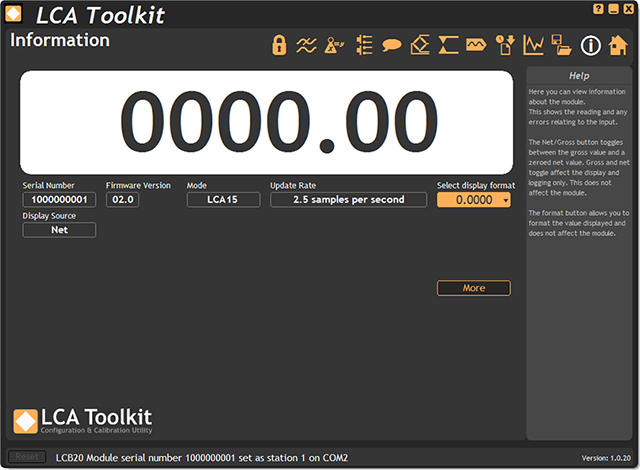

•Full digital set–up using PC or keypad
•3 x configurable digital inputs e.g. for autotare, peak hold and reset
•RS485 and RS232 digital data output for communications and printing
•Measurement speeds 10 / 80 samples per sec
•Factory calibration in mV/V
•5 V excitation supports up to 10 x 350 R load cells
•Fully isolated 4-20 mA and 0-10 V analogue outputs
•6 wire input to compensate for barrier and cable losses
•2 set points SPCO relay outputs
•Sensitivity from 0.5 to 7.8 mV/V
•10 pt linearization
•Firmware now supports Mantrabus 1 & 2, MANTRA ASCII 2 & MODBUS RTU
•ROHS Compliant & Environmentally sealed to IP65 / NEMA 4 enclosure dimensions 200 x 120 x 75 mm

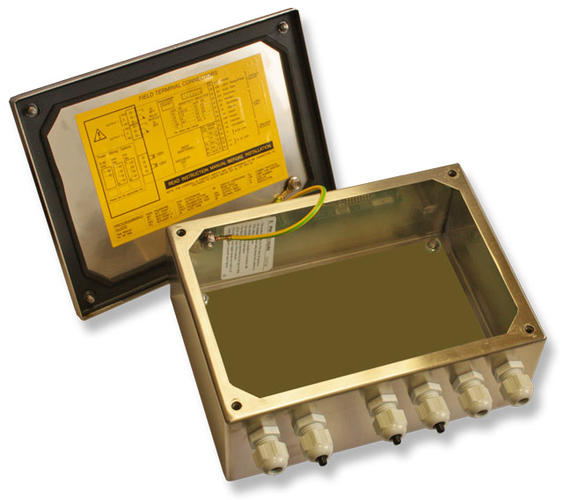

•Supplied in IP65 NEMA4 ABS protected case, stainless steel version or Din rail option see LCB

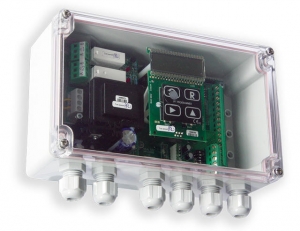

•The LCA20 shown in main photo has the transparent lid option (LTL)
•3 x configurable digital inputs e.g. for autotare, peak hold and reset
•RS485 and RS232 digital data output for communications and printing
•Measurement speeds 10 / 80 samples per sec
•Factory calibration in mV/V
•5 V excitation supports up to 10 x 350 R load cells
•Fully isolated 4-20 mA and 0-10 V analogue outputs
•6 wire input to compensate for barrier and cable losses
•2 set points SPCO relay outputs
•Sensitivity from 0.5 to 7.8 mV/V
•10 pt linearization
•Firmware now supports Mantrabus 1 & 2, MANTRA ASCII 2 & MODBUS RTU
•ROHS Compliant & Environmentally sealed to IP65 / NEMA 4 enclosure dimensions 200 x 120 x 75 mm
•Supplied in IP65 NEMA4 ABS protected case, stainless steel version or Din rail option see LCB
•The LCA20 shown in main photo has the transparent lid option (LTL)
