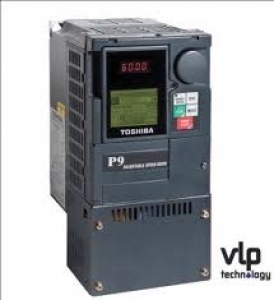

P9 Specification
|
|
MODEL RANGE
|
1 to 150 HP
|
1 to 400 HP
|
|
Voltage Rating
|
200 to 240 VAC
|
380 to 480 VAC
|
|
Input Voltage Tolerance
|
10%
|
|
Voltage Regulation
|
Main Circuit Voltage Feedback Control: Automatic, Fixed, & Off
|
|
PWM Carrier Frequency
|
Adjustable 0.5 to 15 kHz (Drive Specific, Consult Factory)
|
|
Control System
|
Sinusoidal PWM System, Flux-Field Current Vector Control
|
|
V/f Pattern
|
Constant Torque, Voltage Decrease Curve, Automatic Torque Boost, Sensorless Vector Control, 5-Point V/f Custom Curve, PM Drive, & PG Feedback Vector Control
|
|
Overload Current Rating
|
100% Continuous; 120% for One Minute
|
|
Frequency Setting
|
Rotary Encoder Integrated into EOI, 0 to 10 VDC, ±10 VDC, 0 to 20 mA, & Discrete Input
|
|
Frequency Precision
|
Analog Input 0.2% of Maximum Output Frequency; Discrete/Communications Input 0.01% of Maximum Output Frequency
|
|
Output Frequency Range
|
0 to 299 Hz
|
|
Speed Regulation
|
Closed Loop (Up to 0.01%; 1000:1 Speed Range); Open Loop (Up to 0.1%; 60:1 Speed Range)
|
|
Set Point Control (PID)
|
Proportional Gain, Integral Gain, Feedback Settings, Upper/Lower Deviation Limits, Feedback Source Delay Filter, & Feedback Settings Differential Gain
|
|
VLP Function
|
Proprietary Toshiba Technology
|
|
Retry
|
User-Set Number of Retries for Automatic System Restart After Trip
|
|
Restart
|
Able to Smoothly Catch Freewheeling Motor (Bidirectional)
|
|
Enclosure Type
|
NEMA 1
|
|
Standards Compliance
|
UL-Approved
|
|
INPUT/OUTPUT
|
|
|
Discrete Input Terminals
|
Eight Discrete Input Terminals Programmable to 57 Functions; May Be Increased Using Optional Hardware
|
|
Analog Inputs
|
Three: One 0 to 20 mA or 0 to 10 VDC Isolated Input, One 0 To 10 VDC Input, & One ±10 VDC Input
|
|
Discrete Output Contacts
|
Three Programmable To 83 Functions; Two Form-A Contacts & One Form-C Contact
|
|
Analog Outputs
|
Two: One Programmable 4 to 20 mA or 0 to 10 VDC & One 4 to 20 mA Output
|
|
Communication Port
|
Half/Full Duplex RS485; Options: MODBUS RTU or Toshiba TSB Built-In Communications
|
|
Power Terminals
|
Input (L1, L2, L3), Output (T1, T2, T3), DCL (PO, PA), DBR (PA, PB), & DC BUS (PA, PC)
|
|
|
SAFETY FEATURES
|
|
Start & Stop Points
|
Determine Start/Stop Based On User-Set Values, Transducer Feedback Signal, & Programmable Discrete Input Terminal; Work with Delay Timer to Ensure Pump Does Not Start/Stop Too Frequently Due to Unstable/Fluctuating Input Signal
|
|
Sleep Timer
|
Shuts Off Pump After Pump Runs for User-Specified Time at VLP Minimum
|
|
Run External Devices
|
Turns on External Booster Pumps to Support Primary Pump when Necessary
|
|
No-Flow/Low NPSH Cut-Off
|
Stops Pump Once Loss of Water Feed or Closed Output Valve is Detected
|
|
Sealing Water/Vacuum Priming
|
Monitors Water Flow/Water Level & Starts Pump Once Water Flows through Seal or Pump Fills with Water
|
|
|
ELECTRONIC OPERATOR INTERFACE (EOI)
|
|
LCD (Liquid Crystal Display) EOI
|
Plain-English Back-Lit Display
|
|
LED (Light Emitting Diode) EOI
|
Seven-Segment Display
|
|
LED Indicators
|
Run (Red), Stop (Green), Hand (Green), & DC Bus Charge Indicator (Red)
|
|
Keys
|
Hand/Auto, ESC, Run, Mode, & Stop/Reset
|
|
Rotary Encoder
|
Encoder with Integrated Enter Key to View/Change Parameter Settings
|
|
Monitoring
|
Frequency Command Screen; Allows Two User-Selected Monitored Items to be Displayed; Selectable from: Output Current, DC Voltage, Output Voltage, Run Time, Comp. Frequency, VLP, Motor Overload, Motor Load, ASD Load, Input Power, Output Power, RR Input, V/I Input, RX Input, RX2 Input, AM/FM Output
|
|
Selectable Display Units
|
Completely Configurable Along with Scaling Factor Multiplier;
|
