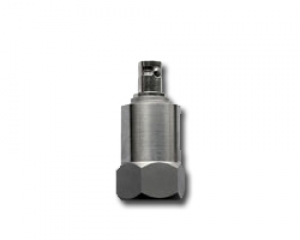

TM0784A Low Power Accelerometer

Manufacturer: ProvibTech

Product ID: TM0784A

Weight: 1.00 lbs

$310.00

The TM0784A-K accelerometer kit consists of one accelerometer and one connector with 5 meter cable. The TM0784A is ideal for battery powered portable meter to measure acceleration with lower power supply voltage.

Data Sheet

Specifications

Electrical
Sensitivity:
	100mV/g, @ 25oC, ±10%
Frequency Response:
	1.0 - 10,000Hz (±3dB)
Acceleration Range:
	10g
Isolation:
	Case and circuit are fully isolated
Electrical Noise:
	0.0007g
Power Requirement:
	3 - 10mA constant current
	9 - 30VDC
Nominal Bias Voltage:
	6.0 VDC
Resonance Frequency:
	20 kHz
Maximum Transmission Distance:
	300 meters (1,000 feet)
Environmental and Physical
Temperature Range:
	-50oC to +120oC
Environmental Protection:
	IP67
Weight:
	90 grams
Case Material:
	Stainless steel
Mounting:
	1/4-28UNF tapped hole
Installation Torque:
	29N x M
