Specifications
Electrical |
| Sensitivity: |
|
|
100mV/g, @ 25oC, ±10% |
| Frequency Response: |
|
|
1.0 -10,000Hz (±3dB) |
| Acceleration Range: |
|
|
50g |
| Isolation: |
|
|
Fully isolated |
| Electrical Noise: |
|
|
0.0007g |
| Power Requirement: |
|
|
3 - 10 mA constant current |
|
18 - 30VDC |
| Bias Voltage: |
|
|
10 - 14VDC |
| Resonance Frequency: |
|
|
15 kHz |
| Maximum Transmission Distance: |
|
|
300 meters (1,000 feet) |
Environmental and Physical |
| Temperature Range: |
|
|
-50oC to +150oC |
| Environmental Protection: |
|
IP67 |
| Weight: |
|
|
200 grams |
| Case Material: |
|
|
Stainless steel |
| Mounting: |
|
|
1/4-28UNF or M6 x1 Screw |
| Installation Torque: |
|
|
29N x M |
| Connection |
| MIL-C |
|
|
Hazardous Area Approvals: |
| ATEX: II 1 G, Ex ia IIC T4 |
| CSA: Class I, Div. 1, Group A,B,C,D and T4, |
| Class I, Zone 0, Ex ia IIC T4 |
| PCEC: Ex ia IIC T4 |
|
Order Information
TM0786A-M

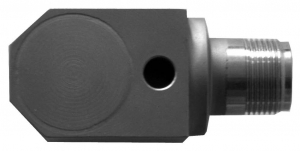

Side-exit accelerometer with metric mounting screw
*TM0786A accelerometer
*Mounting screw M6×1
TM0786A-E
Side-exit accelerometer with English mounting screw
*TM0786A accelerometer
*Mounting screw 1/4-28”
TM0786A-M-S
Side-exit accelerometer with metric mounting screw
*TM0786A accelerometer
*Mounting screw M6×1
*Hazardous area approval
TM0786A-E-S
Side-exit accelerometer with English mounting screw
* TM0786A accelerometer
* Mounting screw 1/4-28”
*Hazardous area approval
|
