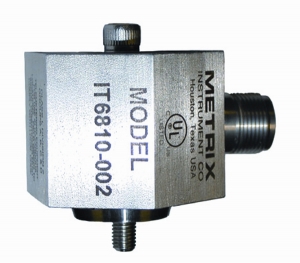

The Model IT6811 Impact Transmitter uses a new technique to measure impact severity on reciprocating machinery.
Impact has been used successfully to measure mechanical looseness on large reciprocating compressors for several years. This new Impact Transmitter combines the benefits of this measurement with the convenience of 4-20 mA loop powered sensor technology.
It has a built-in piezoelectric crystal sensing element, and uses a timing function as part of it’s severity determination. An impact event counter and memory device is used to record events meeting a preset amplitude threshold level. The 4-20 mA signal represents the number of impact events above the threshold level that occur within a preset time window called the reset time.
Mechanical impacts are both measured and qualified within the transmitter. The result is a current output proportional to impact severity.
Metrix Impact Transmitters detect the following: loose rod nuts, cracked rods, broken or loose bolts, liquid in the process, loose or worn wrist pins, excessive clearance in the slipper, and other loose or broken parts.parts.
|
|
