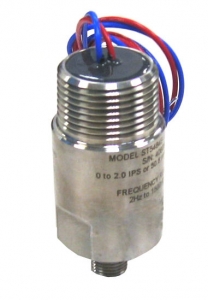

ST5484E Vibration Transmitter

Product ID: ST5484E

Weight: 1.60 lbs

$890.00

Full Range Scale

Mounting Stud

Hazard Rating

Connection

High Pass Filter

Low Pass Filter

Min / max order: 1 / 50

E-mail to a friend

Overview

- Loop terminals w/Independent Polarity Terminal. Prevents incorrect wiring - Different mounting studs available - Available with flying leads, terminal block or MIL style connector - Most stable detection circuit - Temperature shock protected - Widest frequency range - High & low pass filters options - Built-in base & housing strain protection - Dynamic signal option

The Metrix model ST5484E is the ideal solution for sensing vibration on most plant equipment. This precision case mounted vibration sensor and signal conditioner in a single package is built to provide years of reliable service. A simple two-wire loop signal proportional to velocity is generated for transfer to a programmable logic controller (PLC), distributed control system (DCS) or other 4-20 mA input devices. Simply mount the transmitter on the machine case, connect the 2-wire loop and read and/or record the vibration. Model ST5484E is made with our patented IPT®1 technology which eliminates wiring polarity errors.

Optional Stud Adapters

STUD BUSHING

8253-002 1/4” NPT to 1/2” NPT

8841-084 3/8 - 24 UNF to 1/2 - 20 UNF

8841-099 M8 to M10 x 1.25
