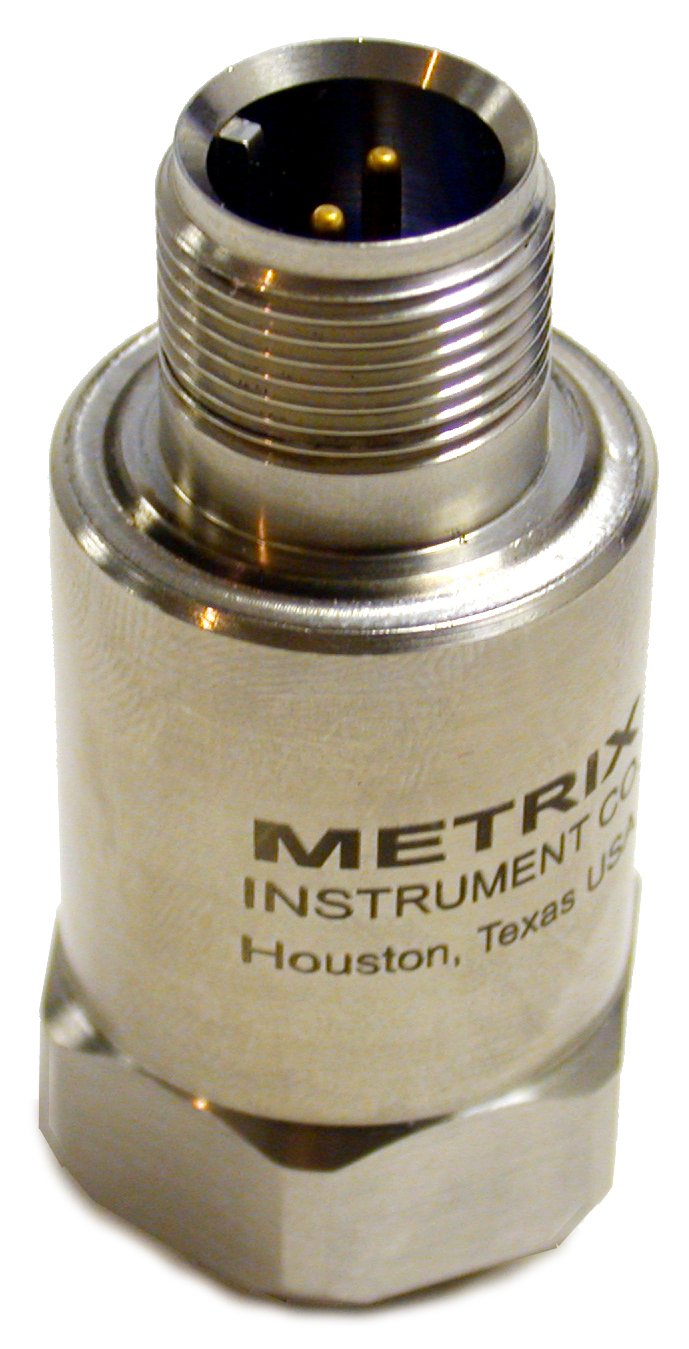

The Metix ST6900 Series case mounted transmitters interface directly with PLC, DCS, and 4-20 mA input monitors. Their compact size allows for installation in tight places. Model ST6911 is 4-20 mA proportional to acceleration, the ST6917 is proportional to velocity, and the ST6923 is proportional to displacement. Model ST6912 is 4-20 mA proportional to acceleration with dynamic output, the ST6918 is proportional to velocity with dynamic output, and the ST6924 is proportional to displacement with dynamic output. All feature Metrix proprietary Independent Polarity Terminal (IPT®)1, which allows for error-free wiring. Each ST6900 Series transmitter has the most stable detection circuit available due to built-in protection against temperature shock, and high accuracy at low frequencies by preventing the “ski slope2” problem.
Features
- Loop-powered
- 4-20 mA proportional to acceleration (ST6911)
- 4-20 mA proportional to velocity (ST6917)
- 4-20 mA proportional to displacement (ST6923)
- Loop terminals with Independent Polarity (IPT®). Prevents incorrect wiring.
- Interfaces with PLC, DCS, 4-20 mA monitors, etc.
- M6 x 1 or 1/4 - 28” mounting studs
- MIL style connector standard
- Widest operating temperature in its class
- Most stable detection circuit available
- Temperature shock protected
- “Ski slope” problem protected
- Hermetically sealed
