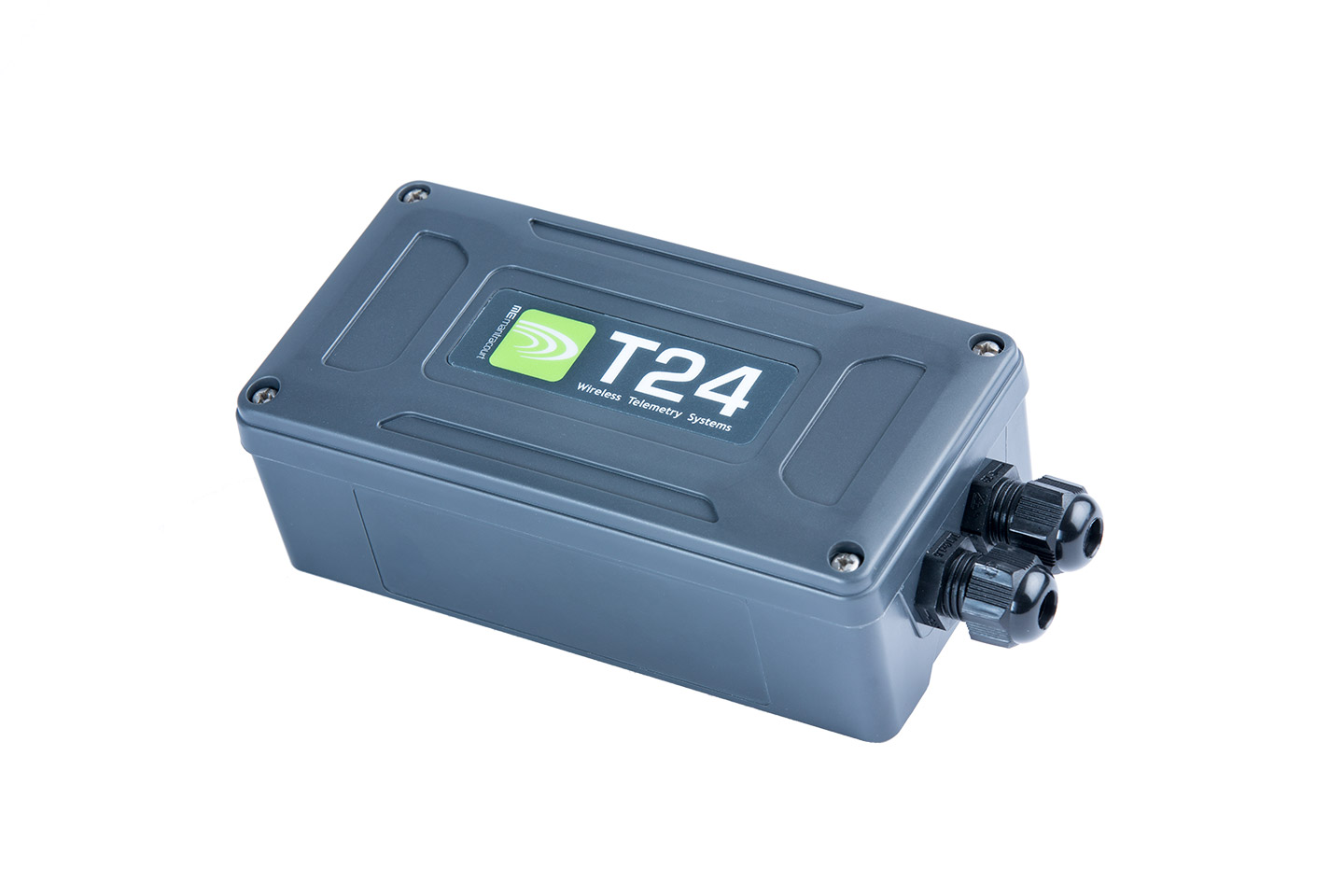

Wireless Data to Relay Output (T24-RM1)

This relay module offers 2 power relays each of which can be assigned a set point and is triggered from either a wireless single acquisition module or a summed group of up to 8.

Relays can be latched and a digital input or external command can be used to reset them. An alarm signal relay is operated if communications is lost or other selectable errors occur. This alarm output can be silenced by a contact free digital input or external command.

The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.

The module is configured using free T24 Toolkit software which runs on a PC connected to a T24 base station.

Internal antenna offers up to 200m (650 ft) range in an open field site.

• Radio telemetry operated relay module
• Dual 240Vac 5A relay module for limit or window alarms for T24 acquisition modules
• Configurable latching, inversion and hysteresis
• Wide operating supply range

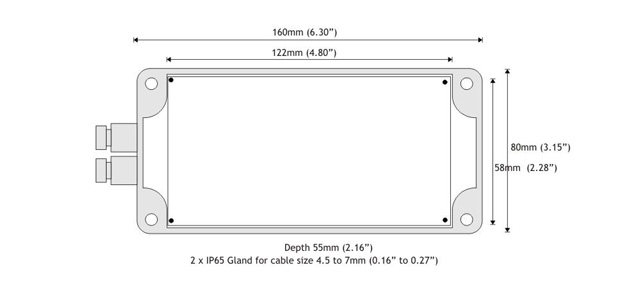

• Surface mounting enclosure
• Simple wireless configuration and calibration
• Internal antenna delivers up to 200m (650 ft) range
• Sealed to IP65 NEMA 4
