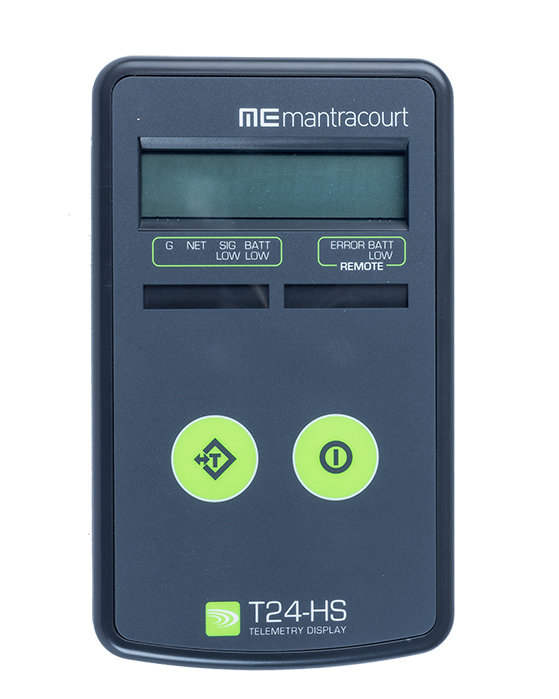

Wireless Telemetry Handheld Display Single Input (T24-HS)

This Mantracourt wireless handheld display module provides an 8 digit LCD reading from any of the T24 Acquisition Modules (strain gauge, current or voltage). The remote acquisition module can be ‘powered on’ and ‘powered off’ automatically as the T24-HS handheld is operated. Status indicators inform the user if the remote acquisition module has input integrity problems, low battery, low signal, over range or other error.

The display can be toggled between gross and a tared value and can optionally be scaled to change measurement units.

The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals

This handheld module uses a pair of standard alkaline AA batteries and is configured using free T24 Toolkit software which runs on a PC connected to a T24 base station.

This wireless handheld display is typically seen in applications requiring wireless loadcell measurement or wireless strain gauge display. To learn more about these applications please see our 'Industries' tab.

• Wireless radio telemetry handheld display for connection to a single T24 Acquisition Module

• Two key operation offering tare functionality

• Auto ‘power on’ and ‘power off’ of remote acquisition module

• Water-proofed to IP65 NEMA 4

• Simple wireless configuration and calibration

• Up to 200m (650 ft) range
