•Wireless range up to 200m
•± 4% from 10 to 125 mph

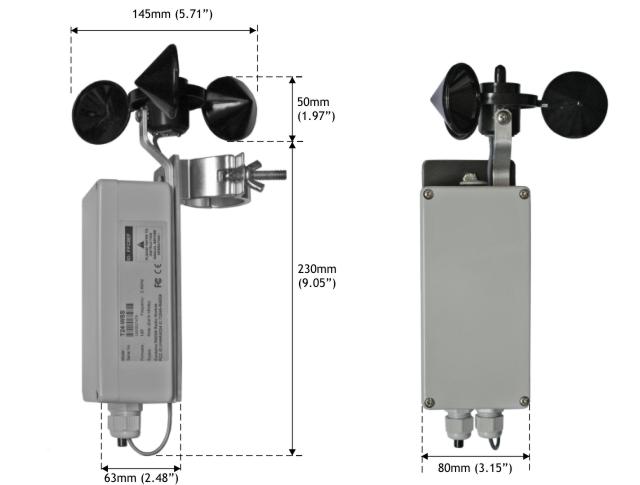

•Rugged case 160 x 80 x 55mm (excluding glands)
•IP65 rated •Variable sampling
•2 x D cell power & external supply
•Half coupler mounting (48-51mm)
•One year warranty
•Photo on the left mounted in situ with the remote data collector and solar panel
The wind speed measurement instrumentation is built on Mantracourt’s T24 2.4Ghz wireless technology and operates alongside any T24 device such as base stations, handheld displays, analogue output, relay modules, GPRS data loggers and more. The device will ‘power down’ between transmissions to maximise battery life in the field and has a wireless range of up to 200 metres. The wind speed sensor features a high quality 3-cup rotor pressed on a stainless steel shaft with rugged Delrin body with bronze Rulon bushings. Housed in an IP65 case. The output value of the anemometer comes pre-calibrated and can be configured to the user’s requirements and measure over the range 5 to 125 mph.
Other output units available are m/s, km/h and fps.
Accuracy: • 0.5mph from 5 to 10 mph
• ± 4% from 10 to 125 mph
The T24-WSS is powered either from internal batteries or an external supply. For applications which require high sampling rates for long periods Mantracourt’s Power Pack1 and Solar Panel1 (PP1 & SP1) offers an ideal solution.
)
)
