Battery Charger for T24 Acquisition Modules (T24-BC1)

Manufacturer: Mantracourt

Product ID: T24-BC1

Weight: 1.00 lbs

$60.00

E-mail to a friend

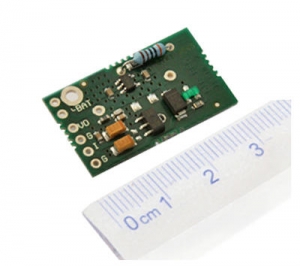

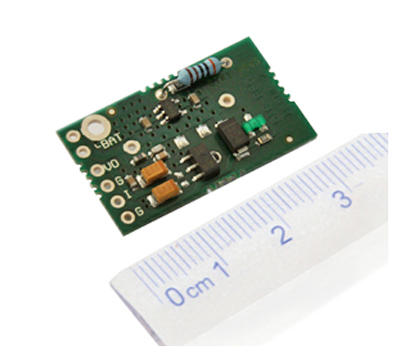

This module is a battery charger and power supply suitable for the T24 range of telemetry acquisition modules.

From a 5 Volt supply the module produces a regulated 3.3V for the acquisition module and can also charge a suitable Li-ion Battery.

Charger module for lithium battery for use with T24 acquisition modules

Provides 3.3V regulated output
Same footprint as T24 acquisition modules
Charges from 5VDC supply (Ideal for USB)

Parameter	Min	Typical	Max	Units
Supply Voltage	4.1	5	6	V
Regulated Voltage Output	-	3.3	-	V
Battery Positive Connection	-	3.7	-	V
Maximum Cable Length	-	-	150*	mm
Dormant PCB Current	-	1.7		μA

* 07/02 gauge wire attached to maximum load i.e. T24-SA with four 350 Ohm strain gauges.
Note: LED will only be lit when an input voltage is applied.

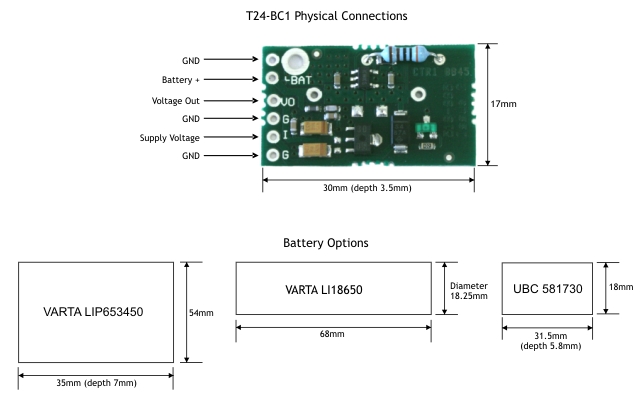

Battery Options

Varta LIP653450
Rated Capacity	1100mAh
Dimensions	35 x 54 x 7mm
Weight	20g
Charge Time	3hrs @ 466mA
Battery Life T24-SAi & e	1 month 25 days*
Varta LIC18650
Rated Capacity	2200mAh
Dimensions	18.25 Diameter 65mm Height
Weight	46g
Charge Time	4.5hrs @ 466mA
Battery Life	3 months 20 days*
UBC 581730
Rated Capacity	250mAh
Dimensions	18 x 31.5 x 5.8mm
Weight	6.5g
Charge Time	2hrs @ 133mA
Battery Life	7 days*

* Note: Battery life is calculated with a T24-SA running in low power mode with a sample time of 5mS and transmit interval of 333mS for 2 hours out of every 8 hours, to a 1k Ohm bridge.
