ICAS & ICAH Strain Gauge or Load Cell Embedded Analog Amplifier

Product ID: ICA1/ICA6

Weight: 0.50 lbs

$130.00

Overview

Mantracourt low cost Strain Gauge or Load Cell Embedded Analog Amplifier PCB.

ICA (models ICA1 - ICA6 S & H)

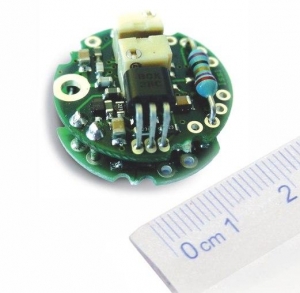

The Mantracourt ICA range of miniature load cell signal conditioners, offer a high performance strain gauge amplifier in miniature format, designed specifically for fitting inside load cells, converting a standard load cell to a volt or mA output.

The Mantracourt ICA family offers high stability and fast response.

The Mantracourt amplifier is available in 6 versions with very high stability.

The Mantracourt ICAH range offer very low drift over wide operating temperatures.

ATEX certification pending on some variants.

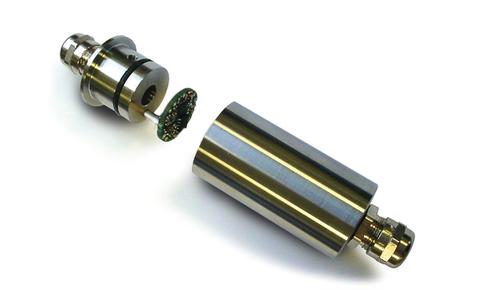

Optional (ILE) in line enclosure to convert a standard load cell to a conditioned load cell output

Industrial Stability ICAS -DISCOUNTINUED MODELS HAVE STRIKE THROUGH
ICA1S 0-10V 3 wire
ICA2S 0-5V 3 wire
ICA3S ±10V 4 wire
ICA4S 4-20mA 3 wire
ICA5S 4-20mA 2 wire
ICA6S ± 10V 3 wire

Very High Stability ICAH
ICA1H 0-10V 3 wire
ICA2H 0-5V 3 wire
ICA3H ± 10V 4 wire
ICA4H 4-20mA 3 wire
ICA6H ± 10V 3 wire

ATEX Intrinsically Safe
ICA5A 4-20mA 2 wire

ICA1,2,3,6 Voltage Output Amplifiers

ICA1 0.1-10.1V

Parameter

Min

Typical

Max

Units/Notes

Electrical & Environmental

Supply Voltage Range

Volts

Operating Current

mA Note 1

Operating Temp Range

-40

ºC

Storage Temp Range

-40

ºC

Reverse Polarity Protection

-30

Volts

Measurements

Bridge Excitation

4.9

5.1

Volts

Bridge Impedance

330

350

5000

Ohms

Bridge Sensitivity

0.5

2.5

150

mV/V Note 2

Output Voltage Range

0.1

+10.1

Volts

Output Load

5000

Ohms

Band Width

1000

Zero Adjustment

±2

%FR

Span Adjustment

±8

%FR

Linearity

0.02

%FR

Zero Temp Stability S

0.0009

0.0025

±%FR/ºC

Zero Temp Stability H

0.0004

0.0015

±%FR/ºC

Span Temp Stability S

0.0025

0.0064

±%FR/ºC

Span Temp Stability H

0.002

0.0051

±%FR/ºC

ICA2 0.1-5.1V

Electrical & Environmental

Supply Voltage Range

8.5

Volts

Operating Current

mA Note 1

Operating Temp Range

-40

ºC

Storage Temp Range

-40

ºC

Reverse Polarity Protection

-30

Volts

Measurements

Bridge Excitation

4.9

5.1

Volts

Bridge Impedance

330

350

5000

Ohms

Bridge Sensitivity

0.5

2.5

150

mV/V Note 2

Output Voltage Range

0.1

±5.1

Volts

Output Load

5000

Ohms

Band Width

1000

Zero Adjustment

±2

%FR

Span Adjustment

±8

%FR

Linearity

0.02

%FR

Zero Temp Stability S

0.0009

0.0025

±%FR/ºC

Zero Temp Stability H

0.0004

0.0015

±%FR/ºC

Span Temp Stability S

0.0025

0.0064

±%FR/ºC

Span Temp Stability H

0.002

0.0051

±%FR/ºC

ICA3 ±10V

Electrical & Environmental

Supply Voltage Range

±13

±15

Volts

Operating Current

mA Note 1

Operating Temp Range

-40

ºC

Storage Temp Range

-40

ºC

Reverse Polarity Protection

-30

Volts

Measurements

Bridge Excitation

4.9

5.1

Volts

Bridge Impedance

330

350

5000

Ohms

Bridge Sensitivity

0.5

2.5

150

mV/V Note 2

Output Voltage Range

-10

+10

Volts

Output Load

5000

Ohms

Band Width

1000

Zero Adjustment

±2

%FR

Span Adjustment

±8

%FR

Linearity

0.02

%FR

Zero Temp Stability S

0.0009

0.0025

±%FR/ºC

Zero Temp Stability H

0.0004

0.0015

±%FR/ºC

Span Temp Stability S

0.0025

0.0064

±%FR/ºC

Span Temp Stability H

0.002

0.0051

±%FR/ºC

ICA6 ±10V

Electrical & Environmental

Supply Voltage Range

Volts Note 3

Operating Current

mA Note 1

Operating Temp Range

-40

ºC

Storage Temp Range

-30

ºC

Reverse Polarity Protection

Volts

Measurements

Bridge Excitation

4.9

5.1

Volts

Bridge Impedance

330

350

5000

Ohms

Bridge Sensitivity

0.5

2.5

150

mV/V Note 2

Output Voltage Range

-10

+10

Volts

Output Load

5000

Ohms

Band Width

1000

Zero Adjustment

±2

%FR

Span Adjustment

±8

%FR

Linearity

0.02

%FR

Zero Temp Stability S

0.0009

0.0025

±%FR/ºC

Zero Temp Stability H

0.0004

0.0015

±%FR/ºC

Span Temp Stability S

0.0025

0.0064

±%FR/ºC

Span Temp Stability H

0.002

0.0051

±%FR/ºC

ICA4,5 Current Output Amplifiers

ICA4 4-20mA

Electrical & Environmental

Supply Voltage Range

Volts Note 4

Operating Current

mA Note 1

Operating Temp Range

-40

ºC

Storage Temp Range

-40

ºC

Reverse Polarity Protection

-30

Volts

Measurements

Bridge Excitation

4.9

5.1

Volts

Bridge Impedance

330

350

5000

Ohms

Bridge Sensitivity

0.5

2.5

150

mV/V Note 2

Output Current Range

Output Load

500

Ohms

Band Width

1000

Zero Adjustment

±2

%FR

Span Adjustment

±8

%FR

Linearity

0.02

%FR

Zero Temp Stability S

0.0009

0.0025

±%FR/ºC

Zero Temp Stability H

0.0004

0.0015

±%FR/ºC

Span Temp Stability S

0.0025

0.0064

±%FR/ºC

Span Temp Stability H

0.002

0.0051

±%FR/ºC

ICA5S 4-20mA

Electrical & Environmental

Supply voltage Range

7.5

Volts

Operating Current

mA (2 wire)

Operating Temp Range

-40

ºC

Storage Temp Range

-40

125

ºC

Reverse Polarity Protection

-30

Volts

Measurements

Bridge Excitation

1.05

1.11

1.16

Volts Note 5

Bridge Impedance

350

1000

5000

Ohms Note 6

Bridge Sensitivity

0.5

2.5

mV/V Note 2

Output Current Range

Output Load

800

Ohms

Band Width

1000

Zero Adjustment

±2

%FR Note 5

Span Adjustment

±8

%FR

Linearity

0.002

%FR

Zero Temp Stability S

0.001

0.005

±%FR/ºC

Span Temp Stability S

0.007

0.014

±%FR/ºC

ICA5A 4-20mA

Electrical & Environmental

Supply Voltage Range

Volts

Operating Current

mA (2 wire)

Operating Temp Range

-40

ºC

Storage Temp Range

-40

125

ºC

Reverse Polarity Protection

-30

Volts

Measurements

Bridge Excitation

1.05

1.11

1.16

Volts Note 5

Bridge Impedance

350

1000

5000

Ohms Note 6

Bridge Sensitivity

0.5

2.5

mV/V Note 2

Output Current Range

Output Load

800

Ohms

Band Width

1000

Zero Adjustment

±2

%FR Note 5

Span Adjustment

±8

%FR

Linearity

0.02

%FR

Zero Temp Stability S

0.001

0.005

±%FR/ºC

Span Temp Stability S

0.007

0.014

±%FR/ºC

Notes

Note 1 - With 350 Ohm load cell connected.
Note 2 - Factory setting is the typical value shown. For other values fit an alternative calibration resistor.
Note 3 - ICA6 maximum voltage can be increased to 24V with a 1000 Ohm load cell.
Note 4 - The ICA4 can tolerate a lower supply voltage if the output load is reduced e.g. operation is possible at 8V provided that the load does not exceed 150 Ohm.
Note 5 - ICA5 with 1000 Ohms load cell connected.
Note 6 - ICA5 recommended bridge impedance is 1000 Ohms or greater.

General Notes

The voltage between either of the power supply connections and the load cell shield should not exceed 50V. Any leakage will be greater than 10M Ohms.
FR = Full Range

Environmental

Storage Temperature

-40 to +85ºC

Operating Temperature

-40 to +85ºC

Relative Humidity

95% maximum non condensing

CE Environmental Approvals

European EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC
