Hardy HI 5701VT Vibration Transmitter

Product ID: HI 5701

Weight: 2.00 lbs

Overview

Discontinued Item. Refer to
Provibtech TM016 Replacement.

-Loop-powered 4-20 mA output
-True RMS measurement
-Dynamic output
-Reverse wiring protection
-Explosion-proof,CE certified.

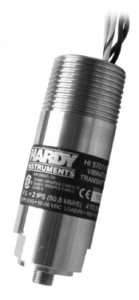

The Hardy HI5701VT is a discontinued Item. Refer to Provibtech TM016 for replacement. The Hardy HI 5701VT Vibration Transmitter is a loop-powered sensor that provides a 4-20 mA signal directly proportional to the overall vibration level of the equipment. With sensor and electronics integrated into one compact design, this transmitter provides an easy-to-install solution with the minimum level of wiring requirements. Using the 4-20 mA output, the HI 5701VT can provide a direct input into any PLC or DCS plant control system for trending, alarming and shutdown capabilities. The HI 5701VT also incorporates two extra wires and a connector for access to the dynamic vibration signal. By plugging into this dynamic output with a data collector, you can access the full vibration spectrum.
