Specifications |
Electrical |
| Sensitivity: |
|
|
100mV/g, @ 25oC, ±10% |
| Frequency Response: |
|
|
0.5 - 10,000Hz (±3dB) |
| Acceleration Range: |
|
|
50g |
| Isolation: |
|
|
Fully isolated |
| Electrical Noise: |
|
|
0.0007g |
| Power Requirement: |
|
|
2 - 10mA constant current |
|
18 - 30VDC |
| Bias Voltage: |
|
|
10 - 14VDC |
| Resonance Frequency: |
|
|
30 kHz |
| Maximum Transmission Distance: |
|
|
300 meters (1,000 feet) |
Environmental and Physical |
| Temperature Range: |
|
|
-50oC to +120oC |
| Environmental Protection: |
|
|
IP67 |
| Weight: |
|
|
90 grams |
| Case Material: |
|
|
Stainless steel |
| Mounting: |
|
|
1/4-28UNF tapped hole |
| Installation Torque: |
|
|
29N x M |
Connection |
| A: Power (red) B: COM (white) Shield |
Order Information

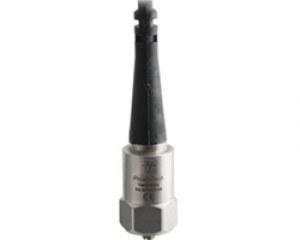

TM0783A-M
Accelerometer Includes:
*Accelerometer
*Mounting screw (1/4-28” to M6×1)
*3m cable
TM0783A-E
Accelerometer Includes:
*Accelerometer
*Mounting screw (1/4-28” to 1/4-28”)
*3m cable
