T24-ACM Single Channel Acquisition Connectivity Module Enclosure

T24-ACM Single Channel Acquisition Connectivity Module Enclosure

Product ID: T24-ACM

Weight: 2.40 lbs

$875.00

E-mail to a friend

Overview

* Field terminals and screw terminals for ease of connection
* Self-contained batteries or usa a regulated power supply
* Regulated external supply
* Simple configuration and calibration of acquisition module
* Integrated antenna provides up to 200m (650ft) range
* 1 year manufacturer's warranty

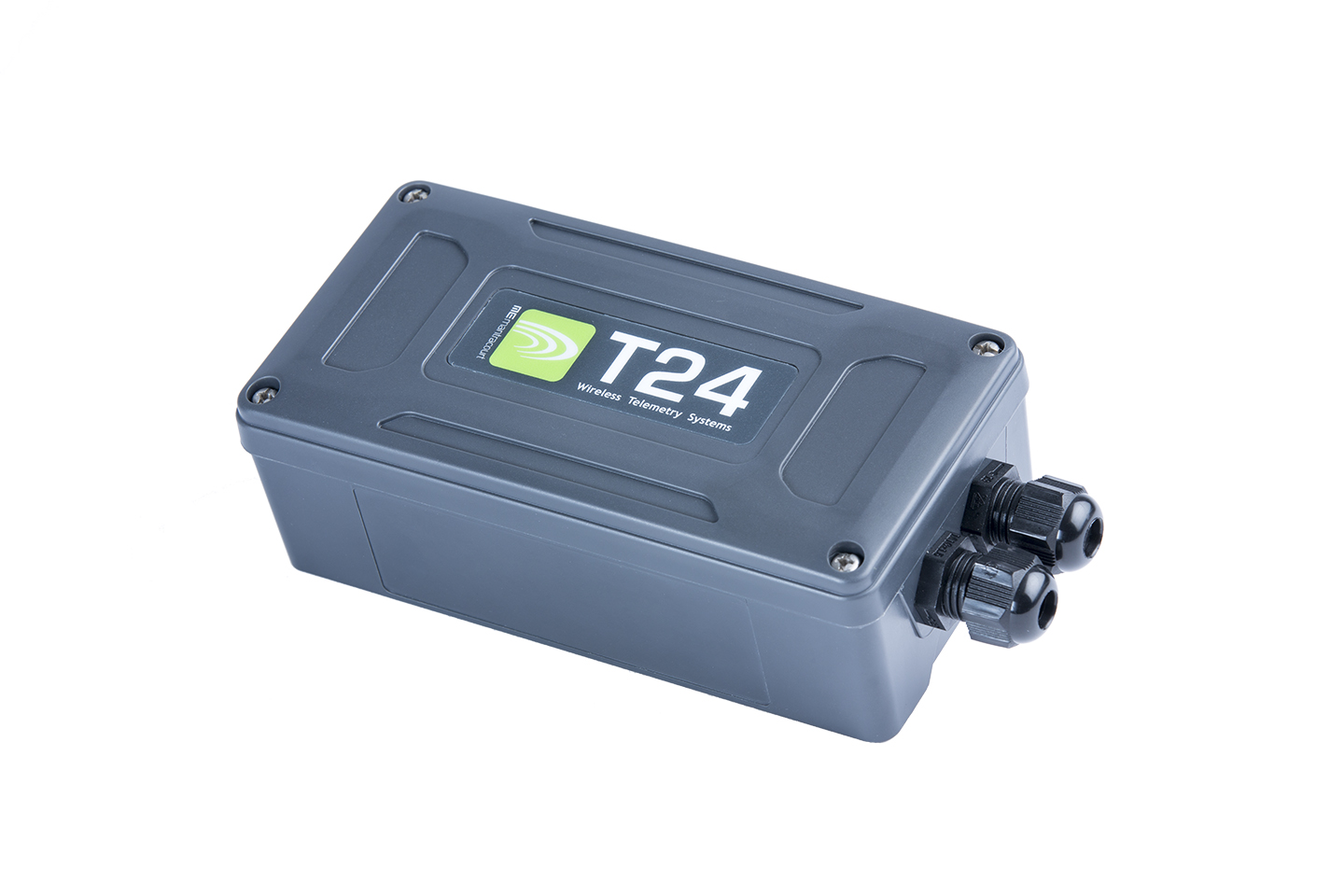

This module is a rugged enclosure for any of the T24 Acquisition modules and provides a battery holder and simple screw field terminals for easy wiring to a variety of sensors.

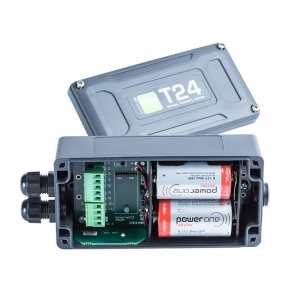

The module allows any of the T24 Acquisition modules to be powered either from the 2 x high capacity Alkaline D cell batteries or from an external supply. The batteries will act as backup if the external supply is lost.

The standard internal antenna supplied offers up to 200m (650 ft) range in an open field site.

The unit is supplied with the Acquisition Module upon ordering.

T24-ACM

Electrical	Min	Typical	Max	Units
Battery Supply Voltage	2.1	3.0	3.6	V DC
External Power Supply Voltage (optional use)	5	-	18	V DC
Environmental
IP Rating		IP65
Operating Temperature Range	-40		+65*	C
Storage temperature	-40		+85	C
Humidity	0		95	%RH
General Radio
Parameter	Min	Typical	Max	Units
Licence		Licence Exempt
Modulation Method		MS (QPSK)
Radio Type		Transceiver (2 way)
Data Type		250		K bits/sec
Radio Frequency	2.4000		2.4835	GHz
Power		1		mw
Integral Antenna			100 (325)	Metres (feet) **
External Antenna			200 (650)	Metres (feet) **
Channels (DSSS)		16
